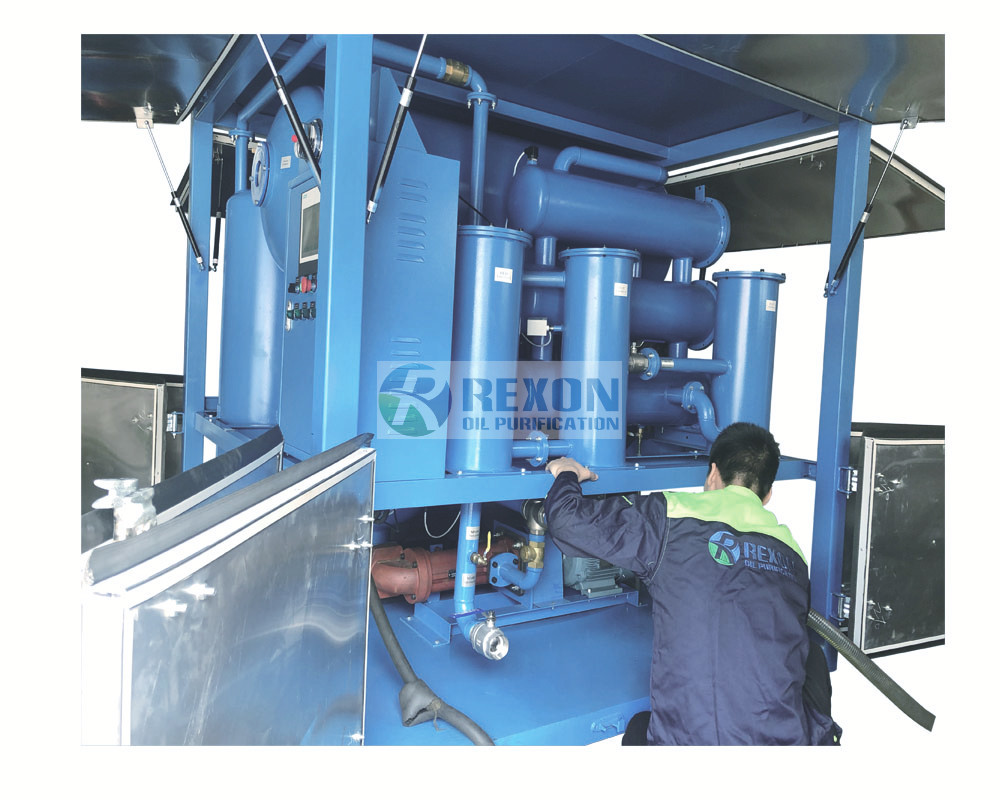

Fully Enclosed Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance

Name: Fully Enclosed Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance
Brand: REXON
Price: 1 USD

China Fully Enclosed Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance wholesale

Brand Name : REXON

Model Number : ZYD-150(9000LPH)

Certification : CE, ISO, SGS, CCC

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500Sets per Month

Delivery Time : 3~10 working days basd on model

Packaging Details : Standard wooden cases

Function : Transformer Oil Filtration, Purification, Maintenance

Process Capacity : 9,000Liters/Hour

Power Supply : 380V, 3Phase, 50HZ or as required

Color : Green, Blue, Grey, White, Yellow Etc.

Work Principle 01 : Automatic Foaming Elimination

Work Principle 02 : Vacuum Oil Dehydration

Work Principle 03 : Multi-Stage Oil Filtering

Work Principle 04 : Thermostatically Heating

Contact Now

Fully Enclosed Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance

Product Description:
As is well known the Transformer plays an important role in the generation, transmission and distribution of electrical energy. Under load the transformer, dissipates heat and the insulating oil acts as a coolant as well as an effective dielectric.
Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength. Also there are some waste impurities, gas contents in the transformer oil which destroy the oil’s quality.
REXON oil purifier is the most efficient and economical purification system.
This oil purification plant is applied to filter various of unqualified insulation oils including aging transformer oil specially for the power which is above 110KV, mutual inductor oil, switch oil and so on. Also it can inject the insulating oil into the transformers on-line.
Features:
1. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
2. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
3. Distinctive removing impurities system filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power
4. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after the treatment
5. Especially applied to vacuum oiling and drying for power transmission equipments which are over 110KV
6. The oil of any grades can be treated on line at the working site.
Can be operated both on-load and off-load.
Can be operated fully-automatically with PLC controller.
this Oil purifier can be made in hermetical, canopy-covering, open and frame style.
Advantages:
Fully Enclosed Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance ,this machine dewater, degas and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.
Fully Enclosed Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance
The oil technical data after treatment:
1. Gas content less than 0.1%
2. Impurity size less than 1μm without free carbon
3. Oil dielectric strength (breakdown voltage) more than 75KV
4. Acidity value less than 0.01 mgKOH/g
5. Dielectric loss factors at 90°C less than 0.001

Fully Enclosed Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance
Technical Parameters:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum		Mpa	-0.08 ～-0.099
Working Pressure		Mpa	≤ 0.3
Temp Range		℃	20 ～80
Power Supply			380V, 50Hz, 3Phase( As per required)
Working Noise		Db	60 - 80 (Depended on the configuation)
Heating Power		KW	30	60	90	135	150	165	180
Total Power		KW	35	67.5	101.5	149	164		198
Inlet/Outlet Diam		MM	25	32	42	50	50	60	60
Weight		KG	450	550	750	950	1200	1850	2000
Size	Length	MM	1450	1450	1750	1850	1950	2050	2150
	Width	MM	950	1000	1250	1300	1350	1400	1450
	Height	MM	1700	1750	1950	2000	2050	2100	2150
AFTER TREATMENT
Dielectric Strength		KV	≥ 75-85
Water Content		PPM	≤ 3
Gas Content		%	≤ 0.1
Particle Size		μ	≤ 3
Cleanliness ≤NAS 1638 Grade 5

Fully Enclosed Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance
