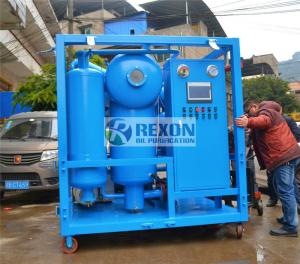

Fully Enclosed Type Bipolar Vacuum Dielectric Oil Purification Machine 9000Liters/Hour
Application:
Fully Enclosed Type Bipolar Vacuum Dielectric Oil Purification Machine 9000Liters/Hour, Vacuum Oil Dehydration Plant, Transformer Oil Purification System, Insulating Oil Filtration Machine Model ZYD-150(9000LPM) is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.

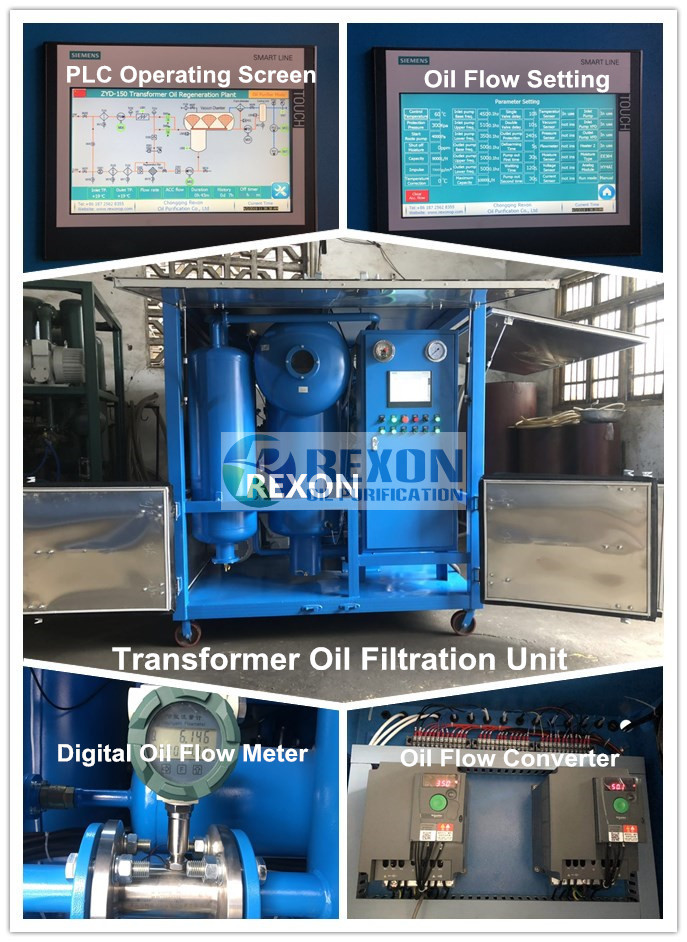

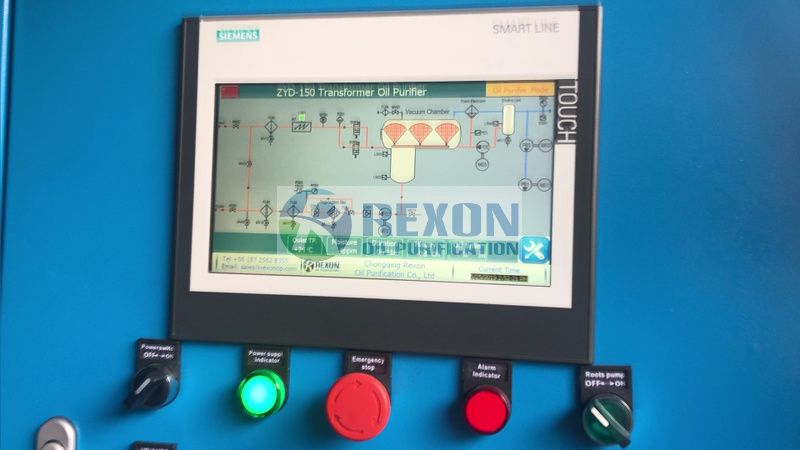

11. Can be installed by PLC programming control system to achieve machine working fully automatically.
Advantage:
Fully Enclosed Type Bipolar Vacuum Dielectric Oil Purification Machine 9000Liters/Hour, Series ZYD Insulating Oil Vacuum Process Purifying Machine and Transformer Oil Filtration Plant Model ZYD-150(9000LPH) can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. As the bridge-type vacuum linking system that also can be an independent vacuum power supply, which can vacuuming and oil injecting for electric insulation devices.
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working Vacuum | Mpa | -0.08 ～-0.099 |
| Working Pressure | Mpa | ≤ 0.3 |
| Temp Range | ℃ | 20 ～80 |
| Power Supply | | 380V, 50Hz, 3Phase( As per required) |
| Working Noise | Db | 60 - 80 (Depended on the configuation) |
| Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 |
| Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | | 198 |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 |
| AFTER TREATMENT |
| Dielectric Strength | KV | ≥ 75-85 |
| Water Content | PPM | ≤ 3 |
| Gas Content | % | ≤ 0.1 |
| Particle Size | μ | ≤ 3 |
| Cleanliness ≤NAS 1638 Grade 5 |
Product Description:
As is well known the Transformer plays an important role in the generation, transmission and distribution of electrical energy. Under load the transformer, dissipates heat and the insulating oil acts as a coolant as well as an effective dielectric.
Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength. Also there are some waste impurities, gas contents in the transformer oil which destroy the oil’s quality.
REXON oil purifier is the most efficient and economical purification system.
This oil purification plant is applied to filter various of unqualified insulation oils including aging transformer oil specially for the power which is above 110KV, mutual inductor oil, switch oil and so on. Also it can inject the insulating oil into the transformers on-line.
The oil technical data after treatment:
1. Gas content is less than 0.1%
2. Impurity size is less than 1μm without free carbon
3. Water content is less than 3 part per million
3. Oil dielectric strength (breakdown voltage) is more than 75KV
4. Acidity value is less than 0.01 mg KOH/g
5. Dielectric loss factors at 90℃ is less than 0.001
