Weather Proof Type High Vacuum Dehydration Dielectric Oil Purifier Machine 9000LPH

Weather Proof Type High Vacuum Dehydration Dielectric Oil Purifier Machine 9000LPH


Technical Parameters:

Application:
Weather Proof Type High Vacuum Dehydration Dielectric Oil Purifier Machine 9000LPH, Double Stage High Vacuum Transformer Oil Filter Unit, Insulation Oil Purification Process Machine Model ZYD-150(9000LPH) is mainly used for power plant, power transmission and all power field to do on-site filtration work for transformer oil, insulating oil, dielectric oil, mutual oil, switch oil, and so on. The machine is especially for purifying the insulating oil in all kinds of large power equipment that are above 110KV, especially for the altitude is over 500-1000 meters.This Oil dehydration plant is very suitable for the large electric&insulation equipment and oil maintenance.

Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.

Advantages:
Weather Proof Type High Vacuum Dehydration Dielectric Oil Purifier Machine 9000LPH, Double Stage High Vacuum Transformer Oil Filter Unit, Insulation Oil Purification Process Machine Model ZYD-150(9000LPH) can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength to be 75~85KV, effectively making sure electric equipment working safely and normally. It also can be an independent vacuum power supply, which can vacuum evacuating and oil injecting for transformers.

Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations

transformer oil purification system

transformer oil treatment plant

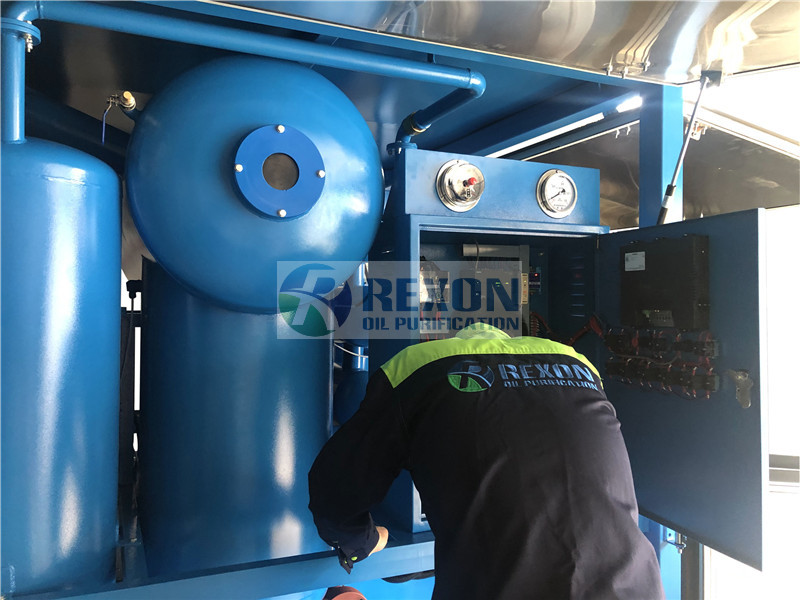

Weather Proof Type High Vacuum Dehydration Dielectric Oil Purifier Machine 9000LPH Images
