Weather Proof Type Bipolar Vacuum Electric Insulating Oil Purifier Machine 12000Liters/Hour

Chongqqing Rexon Oil Purification Co., Ltd
Contact Now

Weather Proof Type Bipolar Vacuum Electric Insulating Oil Purifier Machine 12000Liters/Hour

Brand Name : REXON

Model Number : ZYD-200(912000LPH)

Certification : CE, ISO, SGS, CCC

Place of Origin : Chongqing City, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500Sets per Month

Delivery Time : 3~10 working days basd on model

Packaging Details : Standard wooden cases

Function : Transformer Oil Filtration and Oil Purification

Process Capacity : 0 Liters/Hour ~ 12,000Liters/Hour

Power Supply : 380V, 3Phase, 50HZ or as required

Color : Green, Blue, Grey, White, Yellow Etc.

Data A : Vacuum Process Transformer Oil Purifier Machine

Data B : Transformer Oil Filtration Plant

Data C : Vacuum Oil Dehydration

Data D : Multi-Stage Oil Filter

Contact Now

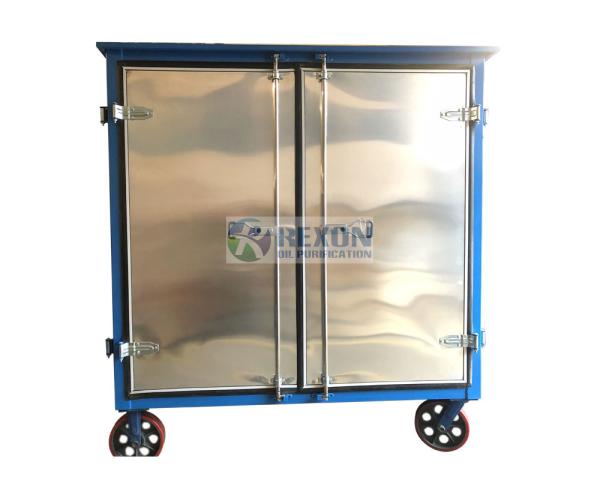

Weather Proof Type Bipolar Vacuum Electric Insulating Oil Purifier Machine 12000Liters/Hour


Weather Proof Type Bipolar Vacuum Electric Insulating Oil Purifier Machine 12000Liters/Hour
Application:
Weather Proof Type Bipolar Vacuum Electric Insulating Oil Purifier Machine 12000Liters/Hour, Oil Flow Variable from 0~12000Liters/Hour, High Vacuum Transformer Oil Filtration Machine ZYD-200 is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.

Features:
1. Two pumps: vacuum pump and booster pump
2. Three-stage filter system
3. Z-shape Heater to make the heating uniformity
4. Installing oil-level floating ball and double-infrared liquid level automatic controller to control the oil level
5. Foam sensor to avoid oil leaking
6. Temperature Controller to protect the machine
7. Suitable oil filtration machine for high voltage transformer
8. Large filtration area, high capacity of holding impurities
9. Two vacuum separator to increase separating size and time.
10. Doing online oil purification of substations over 110 KV.
11. Independent function of vacuum oil filling and drying.
12. Duplex stereo flash evaporation technology
13. Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, it will be power off automatically.
14. Saving energy and time
Technical Parameters:

Parameters Unit ZYD-30 ZYD-50 ZYD-100 ZYD-150 ZYD-200 ZYD-250 ZYD-300
Flow Rate L/H 1800 3000 6000 9000 12000 15000 18000
Working Vacuum Mpa -0.08 ~-0.099
Working Pressure Mpa ≤ 0.3
Temp Range 20 ~80
Power Supply 380V, 50Hz, 3Phase( As per required)
Working Noise Db 60 - 80 (Depended on the configuation)
Heating Power KW 30 60 90 135 150 165 180
Total Power KW 35 67.5 101.5 149 164 198
Inlet/Outlet Diam MM 25 32 42 50 50 60 60
Weight KG 450 550 750 950 1200 1850 2000
Size Length MM 1450 1450 1750 1850 1950 2050 2150
Width MM 950 1000 1250 1300 1350 1400 1450
Height MM 1700 1750 1950 2000 2050 2100 2150
AFTER TREATMENT
Dielectric Strength KV ≥ 75-85
Water Content PPM ≤ 3
Gas Content % ≤ 0.1
Particle Size μ ≤ 3
Cleanliness ≤NAS 1638 Grade 5

Weather Proof Type Bipolar Vacuum Electric Insulating Oil Purifier Machine 12000Liters/Hour
