Brand Name : REXON
Model Number : ZYD-W-200
Certification : CE, ISO, SGS, CCC
Place of Origin : Chongqing, China
MOQ : 1 Set
Price : Negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 500Sets per Month
Delivery Time : 3~10 working days basd on exact model
Packaging Details : Standard Wooden Cases for Export
Function : Dielectric Oil Filtering
Process Capacity : 12000LPH
Power Supply : 380V, 3Phase, 50HZ Or As Required
Color : Green, Blue, Grey, White, Yellow ETC.
More Advantages : Weather Proof | Dust Proof | Enclosed Type
Work Principle 01 : Automatic Foaming Elimination
Work Principle 02 : Vacuum Oil Dehydration
Work Principle 03 : Multi-Stage Oil Filtering
Weather Proof Type Bipolar Vacuum Transformer Oil Purifier Machine 12000Liters/Hour
The oil technical data after treatment:
1. Gas content is less than 0.1%
2. Impurity size is less than 1μm without free carbon
3. Water content is less than 3 part per million
3. Oil dielectric strength (breakdown voltage) is more than 75KV
4. Acidity value is less than 0.01 mg KOH/g
5. Dielectric loss factors at 90℃ is less than 0.001
(oil filtration, oil purification, oil treatment, oil purifier, oil recycling, oil processing, oil filtering, oil filtration, energy saving, oil regeneration, oil processor, oil filter, oil process, oil purify, oil regenerating, oil restoration, waste oil disposal, oil reclaimed, oil reclaiming, waste oil management, oil regenerate, oil reconditioned, oil reconstituted, oil restituting, oil recovering, oil recondition, oil filters, oil refinery, oil refiner, oil cleaning, oil recycle, oil reclaiming, oil separator, oil recovery, oil recycle, oil reclamation, oil refinery, oil separator, oil separation, oil purifiers, oil recondition )
Technical Parameters:
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Working Vacuum | Mpa | -0.08 ~-0.099 | |||||||
Working Pressure | Mpa | ≤ 0.3 | |||||||
Temp Range | ℃ | 20 ~80 | |||||||
Power Supply | 380V, 50Hz, 3Phase( As per required) | ||||||||
Working Noise | Db | 60 - 80 (Depended on the configuation) | |||||||
Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 | |
Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | 198 | ||
Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 | |
Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 | |
Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 | |
Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 | |
AFTER TREATMENT | |||||||||
Dielectric Strength | KV | ≥ 75-85 | |||||||
Water Content | PPM | ≤ 3 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Particle Size | μ | ≤ 3 | |||||||
Cleanliness ≤NAS 1638 Grade 5 |
Advantages:
Weather Proof Type Double Stage High Vacuum Insulating Oil Purifier Machine 9000Liters/Hour, Vacuum Transformer Oil Filtration System with Weather Proof Housing, Dust Proof Type for Oustide Use, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can take use of the machine in any weather and many circumstances for any on-site oil filtration project.
Application:
Weather Proof Type Double Stage High Vacuum Insulating Oil Purifier Machine 9000Liters/Hour, Rexon High Vacuum Type Transformer Oil Purification System with Full Enclosure (Weather-Proof Housing) Which is a ultra high vacuum oil dehydration system for Dielectric Transformer Oil Purification and Oil Filtering. This transforemr oil filtration equipment can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally. It's particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work on-site. Meanwhile, it can be used as independent vacuum resource with functions of vacuum drying and vacuum oiling.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oil filling.
9. Weather Proof designing which can be used outside even in raining weather.
10.Designed for processing oil in workshops, in storage tanks or directly in transformers (energized and de-energized transformers both).
Product Introduction:
Our vacuum transformer oil purifier is developed on the characteristics of oil for electricity, especially for special high-voltage transformer above 110kv facilities. We developed the most advanced and the best special insulating oil treatment equipment successfully. Oil purification standard reaches Q/GDW122-2005. After several improvements, the device has reached domestic leading level and international similar products in the same performance parameters, with a high price-performance ratio.
This product is a combination of the international advanced film theory and atomized oil treatment technology, with a highly efficient degassing dehydration and breaking emulsification effect. Oil in this system is fully thin-film (Oil exposed area are fully expanded), and oil is increased the "journey", so that water or gas in oil is vaporized for sufficient time to reach the best effect of dehydration degassing.
The device uses electronic anti-foaming devices and high efficiency of the needle breaking foam technology to eliminate foam (patented technology) and make no "injection" phenomenon during operation.
Adopting the "Y-type" gear pump, guide wheel technology (patented technology) and VFD driving technology, we solved oil-drain problems in high-vacuum and noise problems.
![]() |

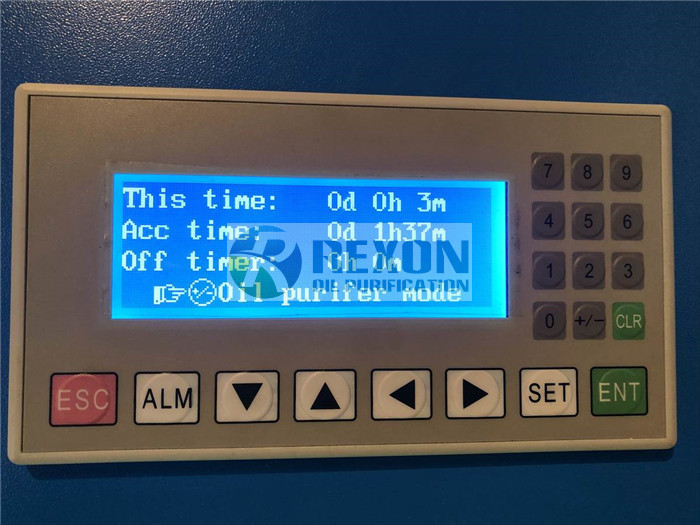

Weather Proof Type Bipolar Vacuum Transformer Oil Purifier Machine 12000Liters/Hour Images |
