Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH Weather Proof Type

Chongqqing Rexon Oil Purification Co., Ltd
Contact Now

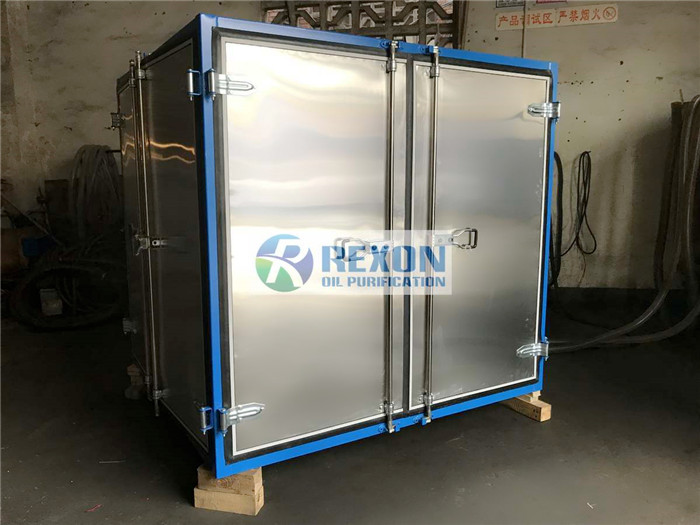

Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH Weather Proof Type

Brand Name : REXON

Model Number : ZYD-150(9000LPH)

Certification : CE, ISO, SGS, CCC

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500Sets per Month

Delivery Time : 3~10 working days basd on model

Packaging Details : Standard wooden cases

Function : Transformer Oil Filtration, Purification, Maintenance

Process Capacity : 90,00Liters/Hour

Power Supply : 380V, 3Phase, 50HZ or as required

Color : Green, Blue, Grey, White, Yellow Etc.

Work Principle 01 : Automatic Foaming Elimination

Work Principle 02 : Vacuum Oil Dehydration

Work Principle 03 : Multi-Stage Oil Filtering

Work Principle 04 : Thermostatically Heating

Contact Now

Weather Proof Type Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH

Application:

Fully Enclosed Type Double Stage High Vacuum Electric Insulating Oil Purifier Machine 9000Liters/Hour, Power Station Transformer Oil Filtration System, Transformer Oil Cleaning and Oil Maintenance System ZYD-150 is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification for high voltage insulating oil of 110KV,220KV,500KV,750KV,1000KV from power transmission equipment.

Feature:

1. Especially for removing water from transformer oil, such as free water, trace water and so on by the double stage vacuum system for high voltage oil.

2. Remove gas, air content from the old high voltage transformer oil by vacuum degassing system.

3. Remove impurities, tiny particles, acidity, sludge, free carbon, other soluble oil decay products and discoloration substances by 3 stages of filters (Primary filter, secondary filter, fine filter).

4. Independent vacuum oiling system for transformers, this oil purifier can also vacuum dry transformer and on-line operation with transformers.

5. Designed for processing high voltage insulating oils in workshops, onsite power stations, purifying oil in oil storage tanks or directly in transformers(energized or de-energized transformers).

6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
7. Double-infrared liquid level sensor, pressure protective system and foaming detecting and eliminating to ensure machine operation easily and safely.

8.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping.

Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH Weather Proof Type

Advantage:

Fully Enclosed Type Double Stage High Vacuum Electric Insulating Oil Purifier Machine 9000Liters/Hour, High Voltage Transformer Oil Purifier Machine Model ZYD is particularly suitable for filtering high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite.

Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH Weather Proof Type

Double stage high vacuum oil filtration system

In order to acquire optimal dielectric strength and insulating efficiency inside of transformers and circuit breakers, dielectric oils should be kept absolutely clean up and dry.

REXON designs and builds the most effective, durable, and easily operation high vacuum transformer essential oil purification method available on the market today.

Transformer essential oil remedy plant means Old transformer essential oil is generally mixed with gas, water and contaminants, and also the new transformer essential oil sometimes, the content of the contaminants generally raises fast by time.

So the transformer essential oil remedy machines can remove these associated gases, water and contaminants, and separate them in the essential oil and consider them away.

After treating the essential oil by our essential oil remedy plant, the stabilized essential oil is then again ready to become used in energy transformers.

ZYD double stages vacuum transformer oil purifier is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index.

It is mainly applied to purification of 110KV, 220KV, 500KV, 750KV, 1000KV power transmission equipment insulating oil, also applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV.

If water is saturation in the oil, it appears as the liquid states and stay at the bottom of container. Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump. The higher vacuum value (Close to 0 Pa), the higher speed of water molecular volatilization (The latest technology, the Vacuum oil purifier can reach to 1Pa Working vacuum value). The gas and water which dissolved in the oil will become gaseity and exhausted by vacuum pump. The oil temperature affect vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular. But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad. So we don't suggest the oil temperature excess 80℃. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision.

Custom built plants can be provided as per customer's specific requirement, such as more flow-rates. These plants work on low temperature, high vacuum principle. Plants mainly consist of heating, filtration and vacuum system. Heating system aids to the filtration and moisture removal. Filtration systems remove suspended particles down to 1 micron such as rust, dirt, scales, colloidal carbon etc. Vacuum Systems remove moisture (emulsified as well as dissolved) down to < 5 – 10 ppm depending on the working vacuum of the plant.

Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH Weather Proof Type

Technical Parameters:

Parameters Unit ZYD-30 ZYD-50 ZYD-100 ZYD-150 ZYD-200 ZYD-250 ZYD-300
Flow Rate L/H 1800 3000 6000 9000 12000 15000 18000
Working Vacuum Mpa -0.08 ~-0.099
Working Pressure Mpa ≤ 0.3
Temperature Range

0~100. Best recommended heating temp. is 55~60℃

Power Supply 380V, 50Hz, 3Phase( As per required)
Working Noise Db 60 - 80 (Depended on the configuation)
Heating Power KW 30 60 90 135 160 180 180
Total Power KW 35 67.5 101.5 149 175 198 198
Inlet/Outlet Diam MM 25 32 42 50 50 60 60
Weight KG 450 550 750 950 1200 1850 2000
Size Length MM 1450 1450 1750 1850 1950 2050 2150
Width MM 950 1000 1250 1300 1350 1400 1450
Height MM 1700 1750 1950 2000 2050 2100 2150
AFTER TREATMENT
Dielectric Strength KV ≥ 75-85
Water Content PPM ≤ 3
Gas Content % ≤ 0.1
Particle Size μ ≤ 1
Cleanliness ≤NAS 1638 Grade 5

Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH Weather Proof Type

Oil Purifier Technical Features:

1. Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa.

2. Being able to remove water and gas fast and effectively under high vacuum and high speed operation status, which achieves satisfactory dryness and could bring the breakdown voltage up to 70KW, resulting in an enhanced one-time filtration effect which reduces the oil aging problem existing with ordinary purifiers as caused by repeated heating.

3. Being able to remove the minimal amount of water and various gases in oil, thus ensuring zero acetylene existence. The Purifier can also serve as vacuum oil filler and dryer for transformer.

4. The advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures long-term safe and reliable operation.

Use:

To be used for treatment to new oil, imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.

Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH Weather Proof Type
