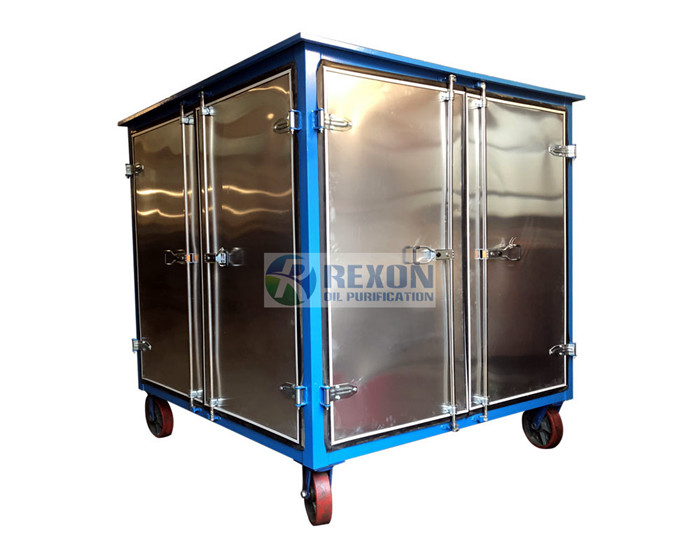

Weather Proof Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance

Weather Proof Type 9000LPH Electric Insulating Oil Purifier Machine for Onsite Transformer Oil Maintenance


Technical Parameters:

Vacuum Dehydration(Degas) system
Our Double-horizontal vacuum evaporation vessels can enlarge evaporation area efficiently. The heater, being places in the vacuum vessels, becomes an evaporator. Thus the evaporation areas of Double-horizontal vacuum vessels are three times more than of the common vacuum vessel. This innovation can dehydrate and degas effectively and separately. This optimal structure of the dehydration (degas) system enlarge the surface area of oil exposed to the vacuum system and extends the flowing distance of the oil in the vacuum system. Thus there has sufficient time to remove the moisture and gas from the oil by vaporization.

Application:
Weather Proof Type High Vacuum Dehydration Dielectric Oil Purifier Machine 9000LPH, Double Stage High Vacuum Transformer Oil Filter Unit, Insulation Oil Purification Process Machine Model ZYD-150(9000LPH) is mainly used for power plant, power transmission and all power field to do on-site filtration work for transformer oil, insulating oil, dielectric oil, mutual oil, switch oil, and so on. The machine is especially for purifying the insulating oil in all kinds of large power equipment that are above 110KV, especially for the altitude is over 500-1000 meters.This Oil dehydration plant is very suitable for the large electric&insulation equipment and oil maintenance.

Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.

Advantages:
Weather Proof Type High Vacuum Dehydration Dielectric Oil Purifier Machine 9000LPH, Double Stage High Vacuum Transformer Oil Filter Unit, Insulation Oil Purification Process Machine Model ZYD-150(9000LPH) can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength to be 75~85KV, effectively making sure electric equipment working safely and normally. It also can be an independent vacuum power supply, which can vacuum evacuating and oil injecting for transformers.

Technology and benefits of the model:
1: It is for treating a range of insulating oil, including transformer oil, mutual inductor oil, change oil.
2: It is extensively applied in large scale manufacturing factory, energy station and other related industrial fields which will use transformers, specifically for more than 110 KV transformers.
3: Double point vacuum system, adopt international remarkable duplex stereo-evaparation technology and british G technology to eliminate the trace water in insulation essential oil and recover its breakdown voltage greatly.
4: Adopt Germany's 3 UG phase replay, will make the machine functioning efficaciously and safely at any situations, such as energy off, lack of phase, wrong phase position, etc.
5: Equipped with remarkable dielectric condensation devices for greatly prolong the essential oil purifier provider life.
6: A trinity of interlocked preventive unit is applied for avoid the machine becoming damanged from any incident automatically.
7: It also can be used becoming a separate vacuum method for dehydrating essential oil only, don't should operate all procedure and can save time and consumption for different ask on essential oil filtration.
8: it may purpose onsite using the transformer operating together.
9: A PLC method can be attached as per customer's requirement.
10: it may be moved easily with equipped steel wheels, it also can be created for different structure of completely enclosed type and completely enclosed trailer type to the objective of ourdoor use and indoor use.
11. a range of coloring of the model can be produced just as customer's favor.

Plants are available in different types of constructions such as open & enclosed models, stationery, portable & mobile models, with single & double stage degassing / dehydration system.
