Brand Name : REXON
Model Number : ZYD-W-100(6000LPH)
Certification : CE, ISO, SGS, CCC
Place of Origin : Chongqing, China
MOQ : 1 Set
Price : Negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 500Sets per Month
Delivery Time : 3~10 working days basd on exact model
Packaging Details : Standard Wooden Cases for Export
Function : Dielectric Oil Treatment
Process Capacity : 1000LPH6000LPH
Power Supply : 380V, 3Phase, 50HZ Or As Required
Color : Green, Blue, Grey, White, Yellow ETC.
More Advantages : Weather Proof | Dust Proof | Enclosed Type
Choices Available : Many Types of Enclosed House
Weather Proof Type Vacuum Processing Transformer Oil Purifier Dewater and Degas from Oil
Technical Parameters:
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Working Vacuum | Mpa | -0.08 ~-0.099 | |||||||
Working Pressure | Mpa | ≤ 0.3 | |||||||
Temp Range | ℃ | 20 ~80 | |||||||
Power Supply | 380V, 50Hz, 3Phase( As per required) | ||||||||
Working Noise | Db | 60 - 80 (Depended on the configuation) | |||||||
Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 | |
Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | 198 | ||
Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 | |
Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 | |
Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 | |
Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 | |
AFTER TREATMENT | |||||||||
Dielectric Strength | KV | ≥ 75-85 | |||||||
Water Content | PPM | ≤ 3 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Particle Size | μ | ≤ 3 | |||||||
Cleanliness ≤NAS 1638 Grade 5 |
Application:
Water Proof Type Strong Vacuum Dehydrating Dielectric Oil Purifier, Enclosd Type Vacuum Dielectric Oil Treatment Machine and Transformer Oil Purification System ZYD-W-100(6000LPH), Weather-Proof (Enclosed Type) Vacuum Dielectric Oil Filtering Unit and Transformer Oil Purification Machine ZYD-W can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. It's particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, it can be used as independent vacuum resource with functions of vacuum drying and vacuum oiling.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

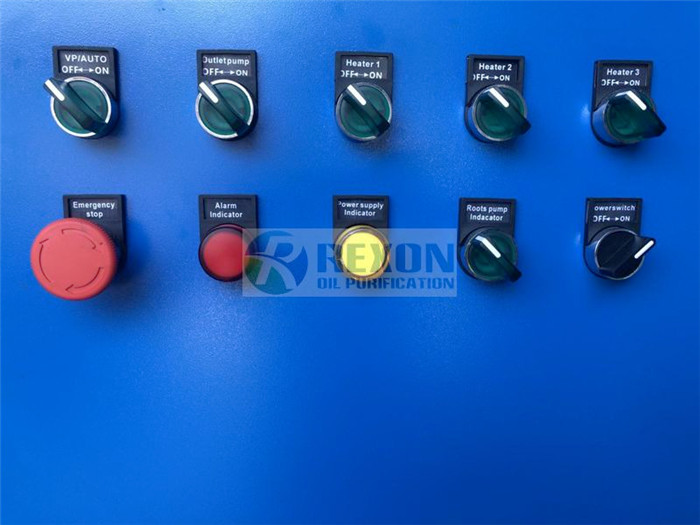

7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oil filling.
9. Weather Proof designing which can be used outside even in raining weather.
10.Designed for processing oil in workshops, in storage tanks or directly in transformers (energized and de-energized transformers both).
Advantages:
Water Proof Type Strong Vacuum Dehydrating Dielectric Oil Purifier, Weather proof type, which is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can take use of the machine in any weather and many circumstances for any onsite oil filtration project.
Double stage high vacuum oil filtration system
In order to acquire optimal dielectric strength and insulating efficiency inside of transformers and circuit breakers, dielectric oils should be kept absolutely clean up and dry.
REXON designs and builds the most effective, durable, and easily operation high vacuum transformer essential oil purification method available on the market today.
Transformer essential oil remedy plant means Old transformer essential oil is generally mixed with gas, water and contaminants, and also the new transformer essential oil sometimes, the content of the contaminants generally raises fast by time.
So the transformer essential oil remedy machines can remove these associated gases, water and contaminants, and separate them in the essential oil and consider them away.
After treating the essential oil by our essential oil remedy plant, the stabilized essential oil is then again ready to become used in energy transformers.
ZYD double stages vacuum transformer oil purifier is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index.
It is mainly applied to purification of 110KV, 220KV, 500KV, 750KV, 1000KV power transmission equipment insulating oil, also applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV.
If water is saturation in the oil, it appears as the liquid states and stay at the bottom of container. Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump. The higher vacuum value (Close to 0 Pa), the higher speed of water molecular volatilization (The latest technology, the Vacuum oil purifier can reach to 1Pa Working vacuum value). The gas and water which dissolved in the oil will become gaseity and exhausted by vacuum pump. The oil temperature affect vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular. But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad. So we don't suggest the oil temperature excess 80℃. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision.
Custom built plants can be provided as per customer's specific requirement, such as more flow-rates. These plants work on low temperature, high vacuum principle. Plants mainly consist of heating, filtration and vacuum system. Heating system aids to the filtration and moisture removal. Filtration systems remove suspended particles down to 1 micron such as rust, dirt, scales, colloidal carbon etc. Vacuum Systems remove moisture (emulsified as well as dissolved) down to < 5 – 10 ppm depending on the working vacuum of the plant.
![]() |
