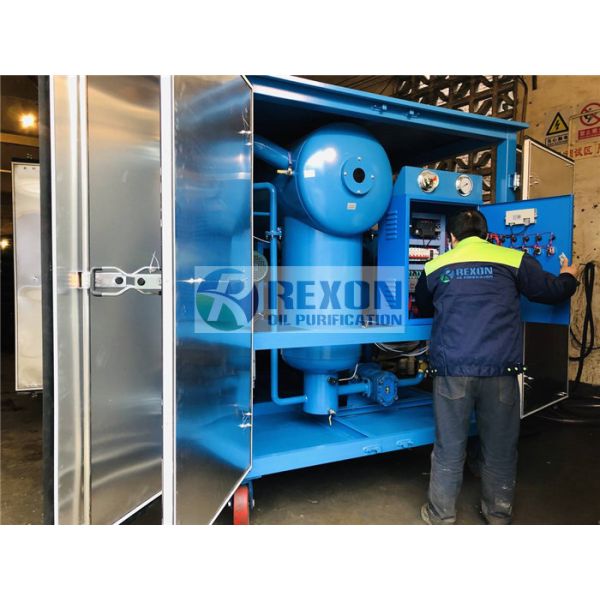

Fully Enclosed Type Power Substation Used Dielectric Oil Purifier 3000LPH~18000LPH

Name: Fully Enclosed Type Power Substation Used Dielectric Oil Purifier 3000LPH18000LPH
Brand: REXON
Price: 1 USD

China Fully Enclosed Type Power Substation Used Dielectric Oil Purifier 3000LPH~18000LPH wholesale

Brand Name : REXON

Model Number : ZYD-300(18000LPH)

Certification : CE, ISO, SGS, CCC

Place of Origin : Chongqing City, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500Sets per Month

Delivery Time : 3~10 working days basd on model

Packaging Details : Standard wooden cases

Function : Transformer Oil Purification

Process Capacity : 0Liters/Hour ~ 18,000Liters/Hour

Power Supply : 380V, 3Phase, 50HZ or as required

Color : Green, Blue, Grey, White, Yellow Etc.

Data A : Vacuum Process Transformer Oil Purifier Machine

Data B : Transformer Oil Filtration Plant

Data C : Vacuum Oil Dehydration

Data D : Multi-Stage Oil Filter

Contact Now

Fully Enclosed Type Power Substation Used Dielectric Oil Purifier 3000LPH~18000LPH

What ZYD can do for you?
1.Removes water, trace water from oil completely
2. Remove impurities from transformer oil fast
3. Reduces combustible gases and oxygen to standard value
4. Improves oil dielectric values
5. Improves transformer power factor
6. Extends oil service life
7. Extends transformer service life and reliability

Application:
Fully Enclosed Type Power Substation Used Dielectric Oil Purifier 3000LPH~18000LPH, Oil Flow Variable from 0~12000Liters/Hour, High Vacuum Transformer Oil Filtration Machine ZYD-200 is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.

Features:
1. Two pumps: vacuum pump and booster pump
2. Three-stage filter system
3. Z-shape Heater to make the heating uniformity
4. Installing oil-level floating ball and double-infrared liquid level automatic controller to control the oil level
5. Foam sensor to avoid oil leaking
6. Temperature Controller to protect the machine
7. Suitable oil filtration machine for high voltage transformer
8. Large filtration area, high capacity of holding impurities
9. Two vacuum separator to increase separating size and time.
10. Doing online oil purification of substations over 110 KV.
11. Independent function of vacuum oil filling and drying.
12. Duplex stereo flash evaporation technology
13. Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, it will be power off automatically.
14. Saving energy and time

Advantage:
Fully Enclosed Type Power Substation Used Dielectric Oil Purifier 3000LPH~18000LPH,Comparing with the single-stage vacuum oil purifier, this machine dewater, degas and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.
Fully Enclosed Type Power Substation Used Dielectric Oil Purifier 3000LPH~18000LPH
Technical Parameters:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum		Mpa	-0.08 ～-0.099
Working Pressure		Mpa	≤ 0.3
Temp Range		℃	20 ～80
Power Supply			380V, 50Hz, 3Phase( As per required)
Working Noise		Db	60 - 80 (Depended on the configuation)
Heating Power		KW	30	60	90	135	150	165	180
Total Power		KW	35	67.5	101.5	149	164		198
Inlet/Outlet Diam		MM	25	32	42	50	50	60	60
Weight		KG	450	550	750	950	1200	1850	2000
Size	Length	MM	1450	1450	1750	1850	1950	2050	2150
	Width	MM	950	1000	1250	1300	1350	1400	1450
	Height	MM	1700	1750	1950	2000	2050	2100	2150
AFTER TREATMENT
Dielectric Strength		KV	≥ 75-85
Water Content		PPM	≤ 3
Gas Content		%	≤ 0.1
Particle Size		μ	≤ 3
Cleanliness ≤NAS 1638 Grade 5

Fully Enclosed Type Power Substation Used Dielectric Oil Purifier 3000LPH~18000LPH
