High Efficiency Vacuum Transformer Oil Purifier Machine For Power Plant Maintenance

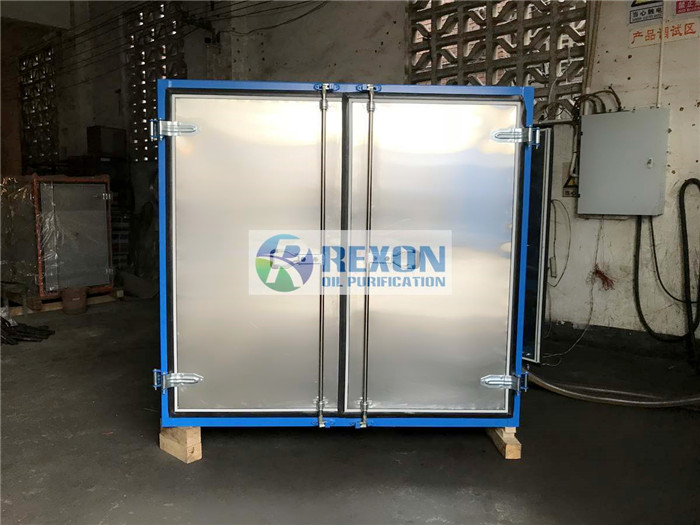

Fully Enclosed Type High Efficiency Vacuum Electric Insulating Oil Purifier Machine for Power Plant Maintenance

Transformer oil treatment plant means?
Old transformer oil is generally mixed with gas, water and contaminants, and also the new transformer oil sometimes, the content of the contaminants generally increases fast by time. So the transformer oil treatment machines can remove these associated gases, water and contaminants, and separate them from the oil and take them away. After treating the oil by our oil treatment plant, the stabilized oil is then again ready to be used in power transformers.

Application:
Fully Enclosed Type High Efficiency Vacuum Electric Insulating Oil Purifier Machine for Power Plant Maintenance, Vacuum Oil Dehydration Plant, Transformer Oil Purification System, Insulating Oil Filtration Machine Model ZYD-50(50LPM) is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.

Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.

Advantage:
Fully Enclosed Type High Efficiency Vacuum Electric Insulating Oil Purifier Machine for Power Plant Maintenance, Series ZYD Insulating Oil Vacuum Process Purifying Machine and Transformer Oil Filtration Plant Model ZYD-50(3000LPH) can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. As the bridge-type vacuum linking system that also can be an independent vacuum power supply, which can vacuuming and oil injecting for electric insulation devices.

Technical Parameters:

Detailed Description

Place of Origin: Chongqing China (Mainland)
Model Number: ZYD-M-100 Oil Filtration Machine
Certificate: CE, ISO 9001, CCC
Color: Green, Blue, any others
Capacities: 600 ~ 18000 Liters per hour
Warranty: 2 years

oil purification, oil filtration, oil processing, oil separation, oil recycling, oil filter, oil purifier, oil treatment

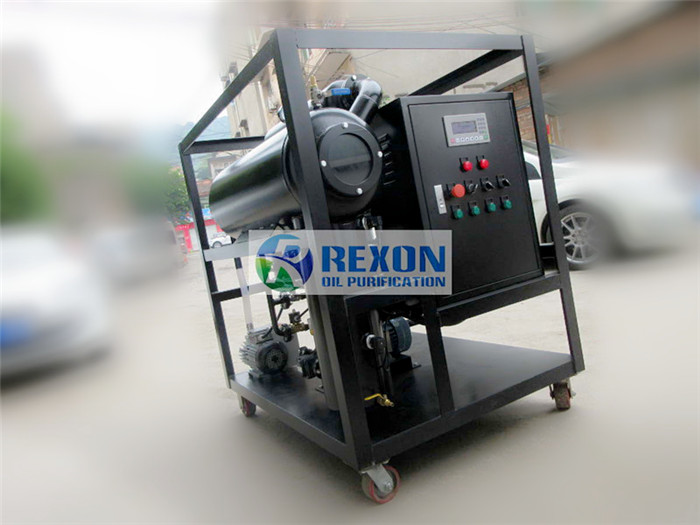

The Mobile Regeneration System (Model ZYD-M) has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. The ZYD-M system provides regular oil purification such as degassing, drying and particulate removal but its main application is in the removal of acidity, sludge, other soluble oil decay products and discoloration. This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special brand of earth. The ZYD-M Model is mounted on a leak proof base and can be installed and operated on a trailer.

Why dewater and degas transformer oil?

water contamination at levels as low as 30 ppm (parts per million) can adversely affect the insulating strength of the oil. With ever-increasing standards for energy efficiency of power distribution transformers, the need to effectively degas will become even more important in the future.

Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency and lifetime of the transformer.

transformer oil purification plant

transformer oil purification system
