Fully Enclosed Type Double Stage High Vacuum Insulating Oil Purification Plant 9000Liters/Hour
Application:
Fully Enclosed Type Double Stage High Vacuum Insulating Oil Purification Plant 9000Liters/Hour is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.
Advantage:
Fully Enclosed Type Double Stage High Vacuum Insulating Oil Purification Plant 9000Liters/Hour, can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. As the bridge-type vacuum linking system that also can be an independent vacuum power supply, which can vacuuming and oil injecting for electric insulation devices.
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working Vacuum | Mpa | -0.08 ～-0.099 |
| Working Pressure | Mpa | ≤ 0.3 |
| Temp Range | ℃ | 20 ～80 |
| Power Supply | | 380V, 50Hz, 3Phase( As per required) |
| Working Noise | Db | 60 - 80 (Depended on the configuation) |
| Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 |
| Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | | 198 |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 |
| AFTER TREATMENT |
| Dielectric Strength | KV | ≥ 75-85 |
| Water Content | PPM | ≤ 3 |
| Gas Content | % | ≤ 0.1 |
| Particle Size | μ | ≤ 3 |
| Cleanliness ≤NAS 1638 Grade 5 |
HV Transformer Oil Filtration, Oil Purifier/ Insulation Oil Dehydration/ Oil Treatment Machine
Our transformer oil regeneration system ZYD serves for regeneration of insulation oil to its virgin characteristics.
Our transformer oil purifier also provides filtration, drying, discoloration and removal of particulate, sludge and other soluble oil decay products.
Our transformer oil purifier’s Application of the system allows acid number of oil to be improved.
This oil Treatment Machine is used to regenerate insulating oils in transformers that are being installed or repaired.
This oil filtering Machine is applicable for high-voltage power transformers, switches, i.e. high-voltage equipment.
ZYD Transformer Oil Purifier enclosed type vacuum insulation oil purification oil regeneration oil reclamation oil treatment oil recovery oil dehydration oil degasification oil filtration oil purifier machine, mainly used for the power station, industrial and mining enterprises purifying the unqualified transformer oil, mutual inductor oil, switch oil and so on. It can not only remove water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength, but also can regenerate the red and dark brown carbonized oxidized transformer oil into bright gold. Besides, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.
Detailed Description
Place of Origin: Chongqing China (Mainland)
Model Number: ZYD-M-100 Oil Filtration Machine
Certificate: CE, ISO 9001, CCC
Color: Green, Blue, any others
Capacities: 600 ~ 18000 Liters per hour
Warranty: 2 years
oil purification, oil filtration, oil processing, oil separation, oil recycling, oil filter, oil purifier, oil treatment
The Mobile Regeneration System (Model ZYD-M) has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. The ZYD-M system provides regular oil purification such as degassing, drying and particulate removal but its main application is in the removal of acidity, sludge, other soluble oil decay products and discoloration. This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special brand of earth. The ZYD-M Model is mounted on a leak proof base and can be installed and operated on a trailer.
Product Tags:
|
|

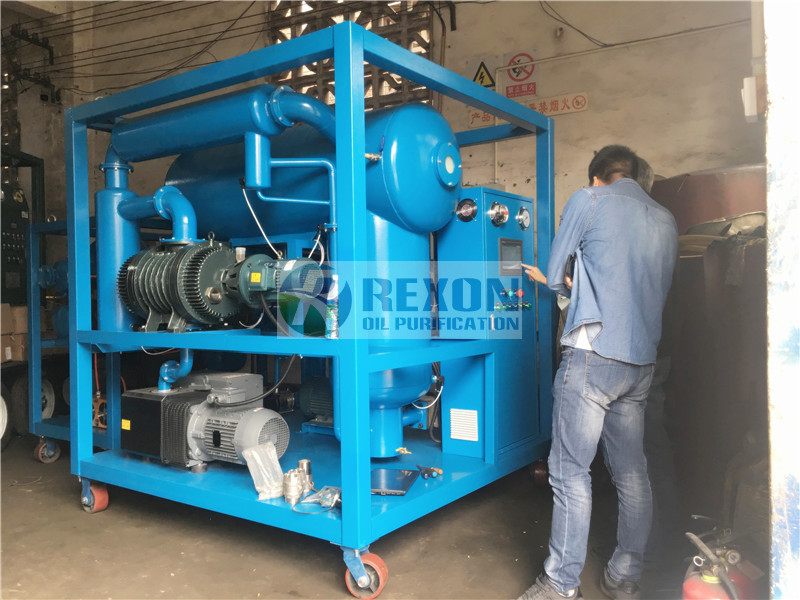

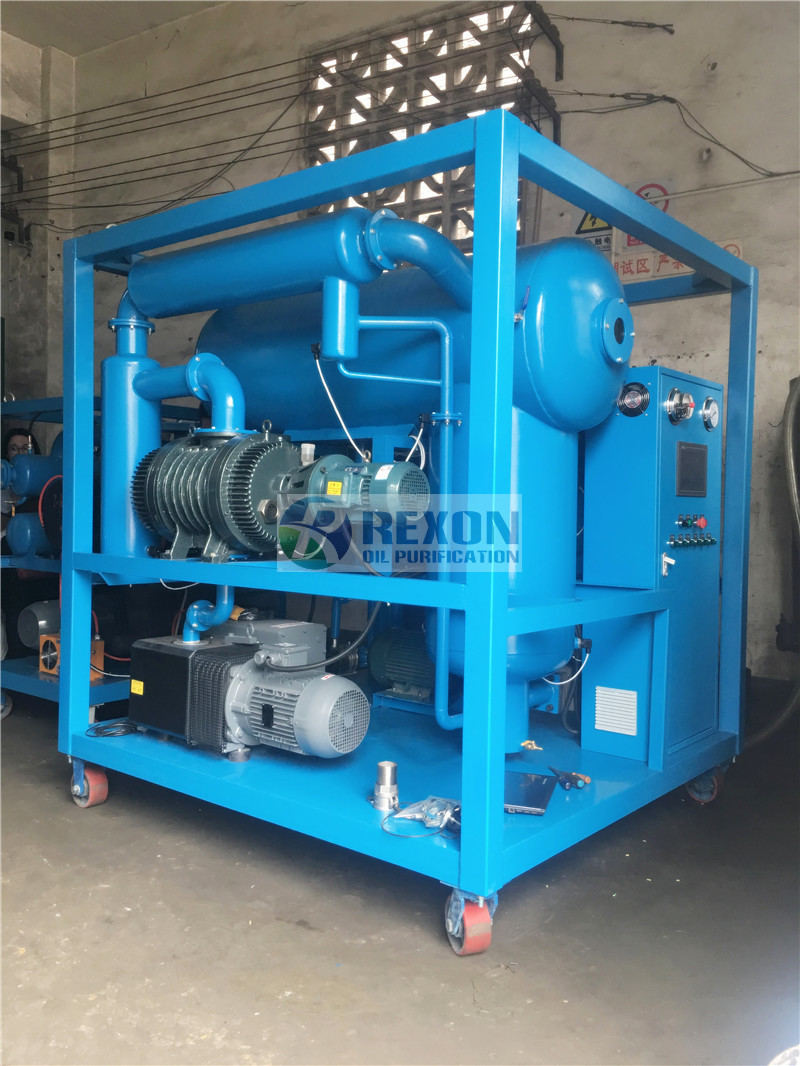

Fully Enclosed Type Double Stage High Vacuum Insulating Oil Purification Plant 9000Liters/Hour Images
|
