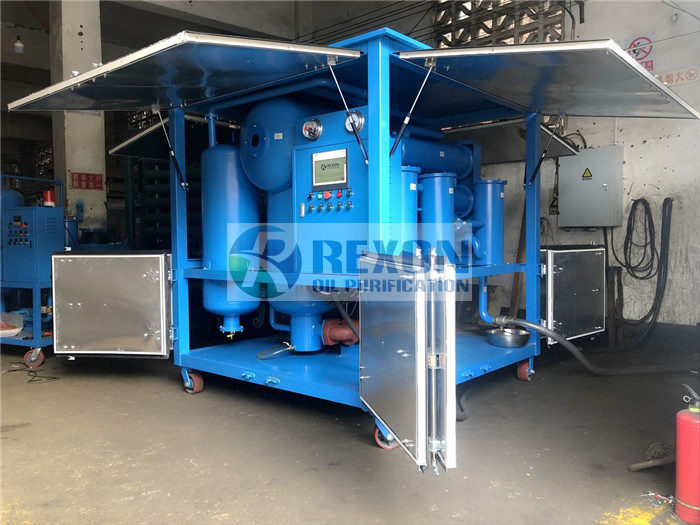

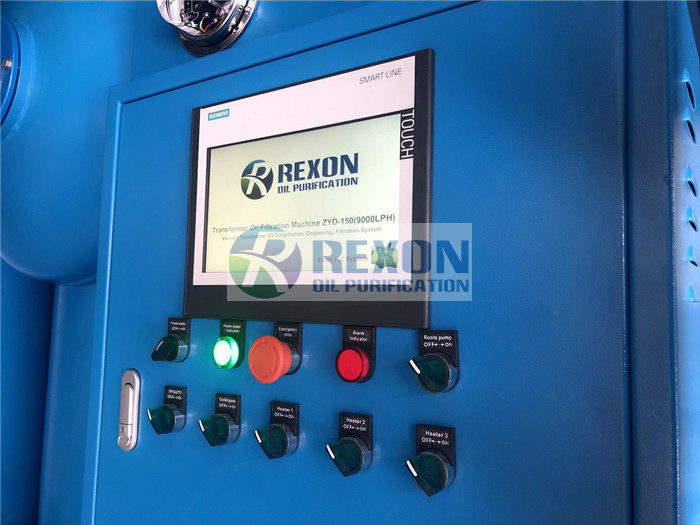

Fully Enclosed Type Three-stage Filter Electric Insulating Oil Purifier Unit 9000Liters/Hour
Application:
Fully Enclosed Type Three-stage Filter Electric Insulating Oil Purifier Unit 9000Liters/Hour is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Features:
1. Two pumps: vacuum pump and booster pump
2. Three-stage filter system
3. Z-shape Heater to make the heating uniformity
4. Installing oil-level floating ball and double-infrared liquid level automatic controller to control the oil level
5. Foam sensor to avoid oil leaking
6. Temperature Controller to protect the machine
7. Suitable oil filtration machine for high voltage transformer
8. Large filtration area, high capacity of holding impurities
9. Two vacuum separator to increase separating size and time.
10. Doing online oil purification of substations over 110 KV.
11. Independent function of vacuum oil filling and drying.
12. Duplex stereo flash evaporation technology
13. Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, it will be power off automatically.
14. Saving energy and time
Advantages
Fully Enclosed Type Three-stage Filter Electric Insulating Oil Purifier Unit 9000Liters/Hour,It's a new-type of high effective vacuum oil purifier with the duplex 3D stereo-evaporation technology and G technology. Also it adopts the technology, which remove the impurities through double FH trapezoidal network and absorbing by high polymer without the mechanical power. So it's five or eight times as effective as the common vacuum oil purifiers, the consumption of energy is least and it's doesn't need other wearing materials.
(oil purifier, oil filter, oil filtration, oil purification, oil recycling, oil treatment, oil regeneration, oil restoration, oil filtering, waste oil disposal, oil reclaiming, waste oil management, energy saving, oil reconditioned, oil reconstituted, oil restituting, oil recovering, oil separator, oil refinery)
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working Vacuum | Mpa | -0.08 ～-0.099 |
| Working Pressure | Mpa | ≤ 0.3 |
| Temp Range | ℃ | 20 ～80 |
| Power Supply | | 380V, 50Hz, 3Phase( As per required) |
| Working Noise | Db | 60 - 80 (Depended on the configuation) |
| Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 |
| Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | | 198 |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 |
| AFTER TREATMENT |
| Dielectric Strength | KV | ≥ 75-85 |
| Water Content | PPM | ≤ 3 |
| Gas Content | % | ≤ 0.1 |
| Particle Size | μ | ≤ 3 |
| Cleanliness ≤NAS 1638 Grade 5 |
What ZYD can do for you?
1.Removes water, trace water from oil completely
2. Remove impurities from transformer oil fast
3. Reduces combustible gases and oxygen to standard value
4. Improves oil dielectric values
5. Improves transformer power factor
6. Extends oil service life
7. Extends transformer service life and reliability

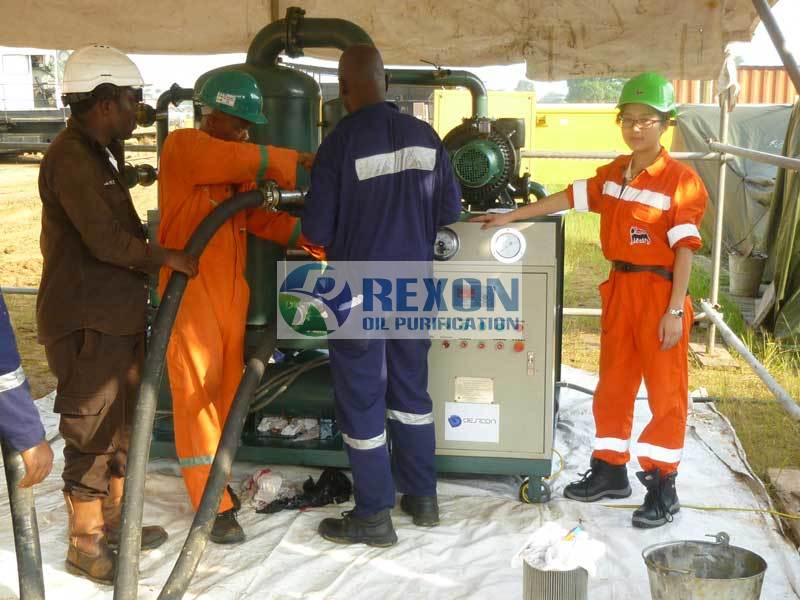

HV Transformer Oil Filtration, Oil Purifier/ Insulation Oil Dehydration/ Oil Treatment Machine
Our transformer oil regeneration system ZYD serves for regeneration of insulation oil to its virgin characteristics.
Our transformer oil purifier also provides filtration, drying, discoloration and removal of particulate, sludge and other soluble oil decay products.
Our transformer oil purifier’s Application of the system allows acid number of oil to be improved.
This oil Treatment Machine is used to regenerate insulating oils in transformers that are being installed or repaired.
This oil filtering Machine is applicable for high-voltage power transformers, switches, i.e. high-voltage equipment.
