Substation Field Vacuum Insulation Oil Filtration Unit Oil Purifier System

Fully Enclosed Type Substation Field Use Vacuum Insulation Oil Filtration Unit 6000 Liters/Hour



Technical Parameters:

Application:
Fully Enclosed Type Substation Field Use Vacuum Insulation Oil Filtration Unit 6000 Liters/Hour, Rexon Aluminium Alloy Enclosed Doors Type Dielectric Oil Treatment Machine is a ultra high vacuum oil dehydration system for Dielectric Transformer Oil Purification and Oil Regeneration. This dielectric oil filtration system can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally. It's particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work on-site. Meanwhile, it can be used as independent vacuum resource with functions of vacuum drying and vacuum oiling.

Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oil filling.
9. Weather Proof designing which can be used outside even in raining weather.
10.Designed for processing oil in workshops, in storage tanks or directly in transformers (energized and de-energized transformers both).

Advantages:

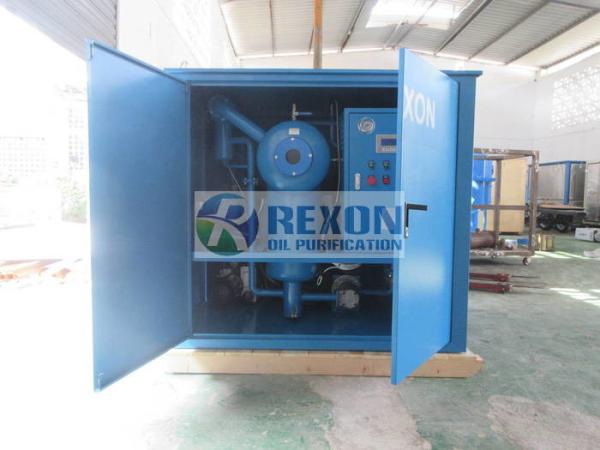

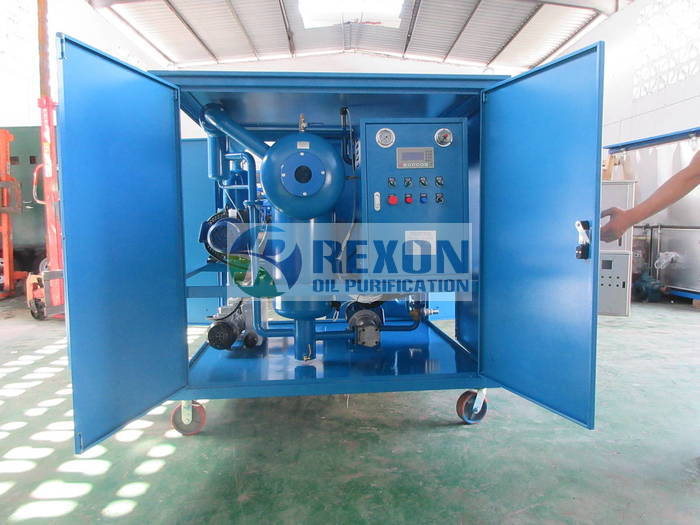

Fully Enclosed Type Substation Field Use Vacuum Insulation Oil Filtration Unit 6000 Liters/Hour, Aluminium Alloy Enclosed Doors is a upgrade material compared with normal metal metrial, it's better looking, and it can perform weather proof, raining proof functions well, as new material covers, which is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can take use of the machine in any weather and many circumstances for any on-site transformer oil filtration project.

Detailed Description

Place of Origin: Chongqing China (Mainland)
Model Number: ZYD-M-100 Oil Filtration Machine
Certificate: CE, ISO 9001, CCC
Color: Green, Blue, any others
Capacities: 600 ~ 18000 Liters per hour
Warranty: 2 years

oil purification, oil filtration, oil processing, oil separation, oil recycling, oil filter, oil purifier, oil treatment

The Mobile Regeneration System (Model ZYD-M) has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. The ZYD-M system provides regular oil purification such as degassing, drying and particulate removal but its main application is in the removal of acidity, sludge, other soluble oil decay products and discoloration. This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special brand of earth. The ZYD-M Model is mounted on a leak proof base and can be installed and operated on a trailer.

Double-Stage Vacuum Transformer Oil Filtration Plant | Insulating Oil Purifier | Dielectric Oil Treatment

• Ideal for insulating oil clean up and transfer

• For large power transmission equipments above 110KV

• Eight models available to accommodate various flow rates

• Continuously removes free water down to 5 ppm or less

• Fluid cleanliness grade (NAS) to 6 or better

• Powerful Vacuum design .

• Dual water and particulate removal

• Coalescence-separation technology

• Duplex 3D evaporation technology

• Double-infrared fluid level controller

• A trinity of interlocked preventive device

• Carbon fiber infrared heating system

• Automatic back-flushing system.

• Unique H.P.M high molecule absorption material

• Mobile equipment for outdoor use

• Explosion-proof type available

• Live-line vacuum oiling and dehydrating feasible

The Transformer Oil regeneration system (Series ZYD) has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers especially for the power, which is over 110KV.

Also it can inject the insulating oil into the transformers on-line. The ZYD system provides regular oil purification such as degassing, drying and particulate removal but also can remove acidity, sludge, other soluble oil decay products and discoloration.

This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special brand of earth. After treating, the oil can be reused as new. For special application, the system also can be mounted on a leak proof base and can be installed and operated on a trailer.
