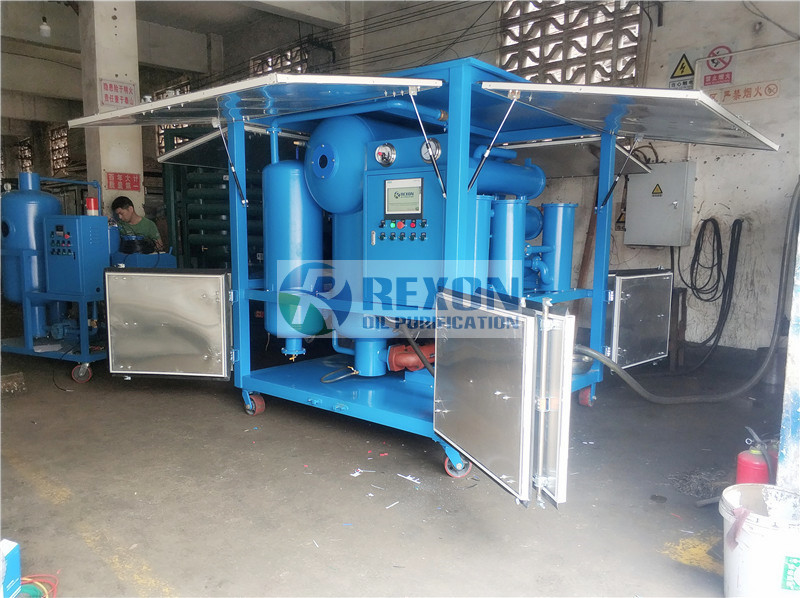

Fully Enclosed Type High Vacuum Dehydration Insulation Oil Purification System 9000LPH
Application:
Fully Enclosed Type High Vacuum Dehydration Insulation Oil Purification System 9000LPH, High Vacuum Transformer Oil Filtration Machine ZYD-150 is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Feature:
1. This machine is high effective and portable, which is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.
2.The machine adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate.
3. High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa.
4. High absorption speed, absorption speed power more than 333L/Sr.
5. Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively.
6. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect.
7. Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
8. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment.
9. The oil of any grades can be treated on line at the working site.
Advantages:
Fully Enclosed Type High Vacuum Dehydration Insulation Oil Purification System 9000LPH, Comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher.
This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working Vacuum | Mpa | -0.08 ～-0.099 |
| Working Pressure | Mpa | ≤ 0.3 |
| Temp Range | ℃ | 20 ～80 |
| Power Supply | | 380V, 50Hz, 3Phase( As per required) |
| Working Noise | Db | 60 - 80 (Depended on the configuation) |
| Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 |
| Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | | 198 |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 |
| AFTER TREATMENT |
| Dielectric Strength | KV | ≥ 75-85 |
| Water Content | PPM | ≤ 3 |
| Gas Content | % | ≤ 0.1 |
| Particle Size | μ | ≤ 3 |
| Cleanliness ≤NAS 1638 Grade 5 |
REXON high vacuum dehydration transformer oil filtration machine is used to deal with unqualified transformer oil, Insulation oil, insulating oil, switch oil and so on with big treatment capacity like 9,000L/H, 12,000L/H, 18,000L/H, 30,000L/H etc. Contaminated transformer oil, after being treated by our oil filter system, can meet the qualified indicators, just like the new oil that has not been polluted, can be reapplied to the transformer.
Oil Purifier Technical Features:

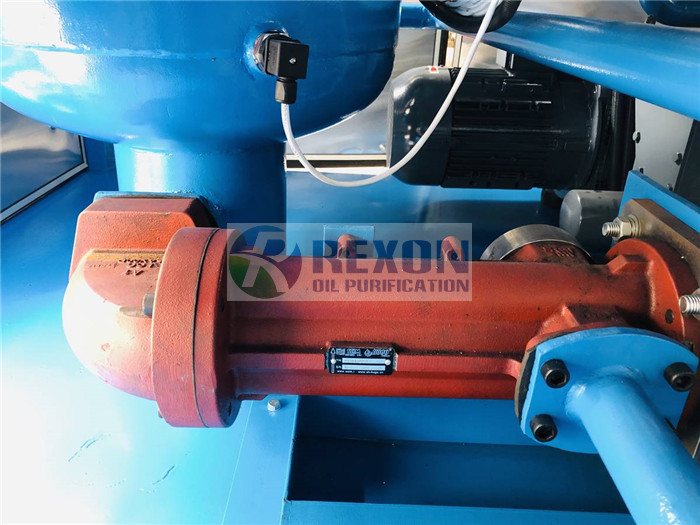

1. Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa.
2. Being able to remove water and gas fast and effectively under high vacuum and high speed operation status, which achieves satisfactory dryness and could bring the breakdown voltage up to 70KW, resulting in an enhanced one-time filtration effect which reduces the oil aging problem existing with ordinary purifiers as caused by repeated heating.
3. Being able to remove the minimal amount of water and various gases in oil, thus ensuring zero acetylene existence. The Purifier can also serve as vacuum oil filler and dryer for transformer.

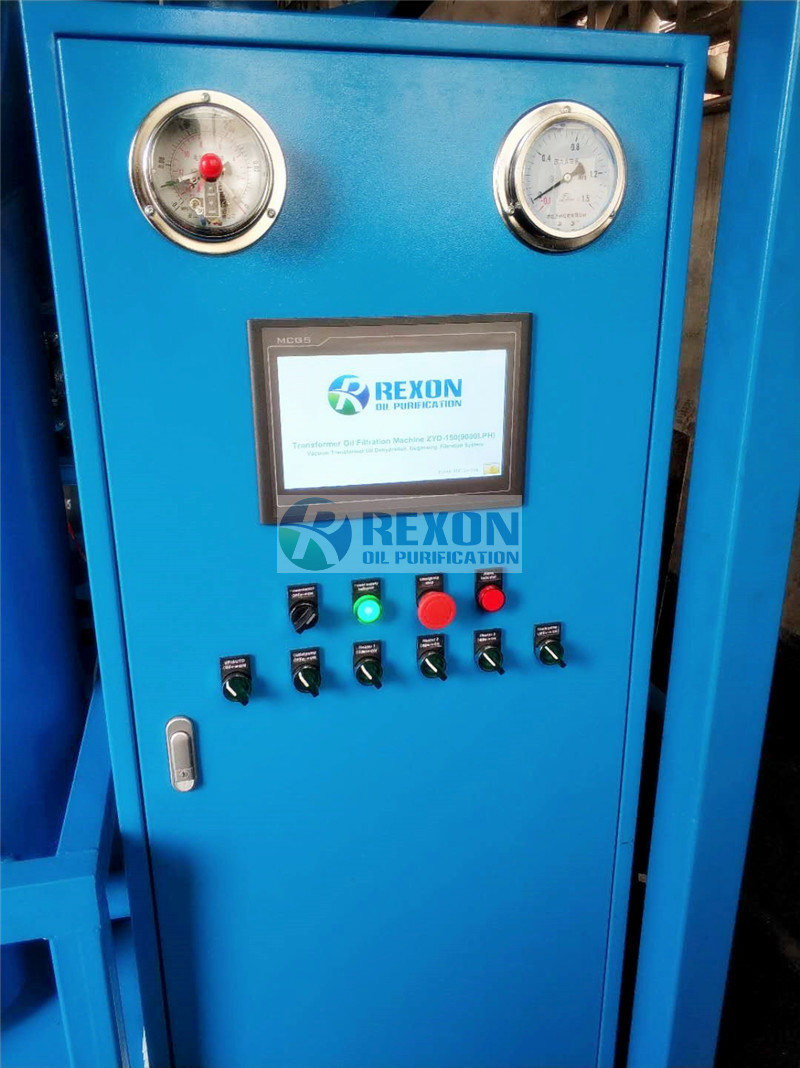

4. The advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures long-term safe and reliable operation.
Use:
To be used for treatment to new oil, imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.
