Function : Transformer Oil Filtration and Oil Purification
Process Capacity : 0 Liters/Hour ~ 12,000Liters/Hour
Power Supply : 380V, 3Phase, 50HZ or as required
Color : Green, Blue, Grey, White, Yellow Etc.
Data A : Vacuum Process Transformer Oil Purifier Machine
Data B : Transformer Oil Filtration Plant
Data C : Vacuum Oil Dehydration
Data D : Multi-Stage Oil Filter
Fully Enclosed Type High Efficiency Vacuum Dielectric Oil Purification Machine for Power Plant Maintenance
Application:
Fully Enclosed Type High Efficiency Vacuum Dielectric Oil Purification Machine for Power Plant Maintenance, High Vacuum Transformer Oil Filtration Machine ZYD-200 is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Features:
1. Two pumps: vacuum pump and booster pump
2. Three-stage filter system
3. Z-shape Heater to make the heating uniformity
4. Installing oil-level floating ball and double-infrared liquid level automatic controller to control the oil level
5. Foam sensor to avoid oil leaking
6. Temperature Controller to protect the machine
7. Suitable oil filtration machine for high voltage transformer
8. Large filtration area, high capacity of holding impurities
9. Two vacuum separator to increase separating size and time.
10. Doing online oil purification of substations over 110 KV.
11. Independent function of vacuum oil filling and drying.
12. Duplex stereo flash evaporation technology
13. Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, it will be power off automatically.
14. Saving energy and time
Advantages:
Fully Enclosed Type High Efficiency Vacuum Dielectric Oil Purification Machine for Power Plant Maintenance can not only removing the water, gas and impurities which mixed in the oil, but also can improve many values reach to the national standard such as the acid value, PH value. Meanwhile, it improves the voltage-withstand value through filtering the polarity materials like free carbon, deep oxides and so on.
We warmly welcome if you want an on-the-point inspection of our factory, you will see various models in our factory and will get professional knowledge of our machine with detailed explanation of our experienced engineer. We also can offer custom solution as per special requirement.
Technical Parameters:
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
Working Vacuum | Mpa | -0.08 ~-0.099 | |||||||
Working Pressure | Mpa | ≤ 0.3 | |||||||
Temp Range | ℃ | 20 ~80 | |||||||
Power Supply | 380V, 50Hz, 3Phase( As per required) | ||||||||
Working Noise | Db | 60 - 80 (Depended on the configuation) | |||||||
Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 | |
Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | 198 | ||
Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 | |
Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 | |
Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 | |
Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 | |
AFTER TREATMENT | |||||||||
Dielectric Strength | KV | ≥ 75-85 | |||||||
Water Content | PPM | ≤ 3 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Particle Size | μ | ≤ 3 | |||||||
Cleanliness ≤NAS 1638 Grade 5 |
Product Introduction:
Our vacuum transformer oil purifier is developed on the characteristics of oil for electricity, especially for special high-voltage transformer above 110kv facilities. We developed the most advanced and the best special insulating oil treatment equipment successfully. Oil purification standard reaches Q/GDW122-2005. After several improvements, the device has reached domestic leading level and international similar products in the same performance parameters, with a high price-performance ratio.
This product is a combination of the international advanced film theory and atomized oil treatment technology, with a highly efficient degassing dehydration and breaking emulsification effect. Oil in this system is fully thin-film (Oil exposed area are fully expanded), and oil is increased the "journey", so that water or gas in oil is vaporized for sufficient time to reach the best effect of dehydration degassing.
The device uses electronic anti-foaming devices and high efficiency of the needle breaking foam technology to eliminate foam (patented technology) and make no "injection" phenomenon during operation.
Adopting the "Y-type" gear pump, guide wheel technology (patented technology) and VFD driving technology, we solved oil-drain problems in high-vacuum and noise problems.
Oil Purifier Technical Features:
1. Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa.
2. Being able to remove water and gas fast and effectively under high vacuum and high speed operation status, which achieves satisfactory dryness and could bring the breakdown voltage up to 70KW, resulting in an enhanced one-time filtration effect which reduces the oil aging problem existing with ordinary purifiers as caused by repeated heating.
3. Being able to remove the minimal amount of water and various gases in oil, thus ensuring zero acetylene existence. The Purifier can also serve as vacuum oil filler and dryer for transformer.
4. The advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures long-term safe and reliable operation.
Use:
To be used for treatment to new oil, imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.
![]() |

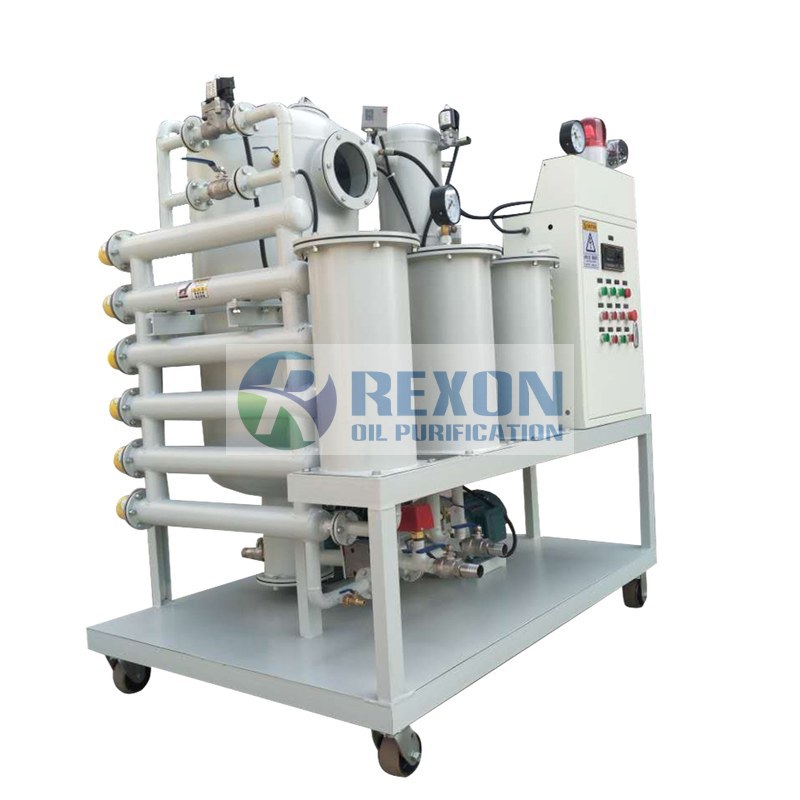

High Efficiency Vacuum Dielectric Oil Purification Machine for Power Plant Maintenance Images |
