Fully Enclosed Type High Vacuum Dehydration Transformer Oil Filtration Machine 9000LPH, Comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher. This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.

Application:

Fully Enclosed Type High Vacuum Dehydration Transformer Oil Filtration Machine 9000LPH, Series ZYD Double-stage vacuum transformer oil purifier can remove the water, gas and impurities in insulation oil high-efficiently, increasing the pressure force and quality of oil, make the oil limiting voltage-withstand value much higher and make sure the electric device running safely. The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oil filling.
9. Weather Proof designing which can be used outside even in raining weather.
10.Designed for processing oil in workshops, in storage tanks or directly in transformers (energized and de-energized transformers both).

Product Introduction:
Our vacuum transformer oil purifier is developed on the characteristics of oil for electricity, especially for special high-voltage transformer above 110kv facilities. We developed the most advanced and the best special insulating oil treatment equipment successfully. Oil purification standard reaches Q/GDW122-2005. After several improvements, the device has reached domestic leading level and international similar products in the same performance parameters, with a high price-performance ratio.

This product is a combination of the international advanced film theory and atomized oil treatment technology, with a highly efficient degassing dehydration and breaking emulsification effect. Oil in this system is fully thin-film (Oil exposed area are fully expanded), and oil is increased the "journey", so that water or gas in oil is vaporized for sufficient time to reach the best effect of dehydration degassing.

The device uses electronic anti-foaming devices and high efficiency of the needle breaking foam technology to eliminate foam (patented technology) and make no "injection" phenomenon during operation.

Adopting the "Y-type" gear pump, guide wheel technology (patented technology) and VFD driving technology, we solved oil-drain problems in high-vacuum and noise problems.

Oil Purifier Technical Features:

1. Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa.

2. Being able to remove water and gas fast and effectively under high vacuum and high speed operation status, which achieves satisfactory dryness and could bring the breakdown voltage up to 70KW, resulting in an enhanced one-time filtration effect which reduces the oil aging problem existing with ordinary purifiers as caused by repeated heating.

3. Being able to remove the minimal amount of water and various gases in oil, thus ensuring zero acetylene existence. The Purifier can also serve as vacuum oil filler and dryer for transformer.

4. The advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures long-term safe and reliable operation.

Use:

To be used for treatment to new oil, imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.

transformer oil purification plant

transformer oil purification system

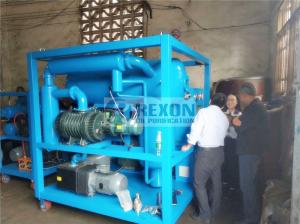

High Vacuum Dehydration Transformer Oil Filtration Machine 9000LPH Images
