Fully Enclosed Type Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH
Application:
Fully Enclosed Type Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH,ZYD Dielectric Oil Purification and Oil Processing System Model ZYD-150(9000LPH) is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.

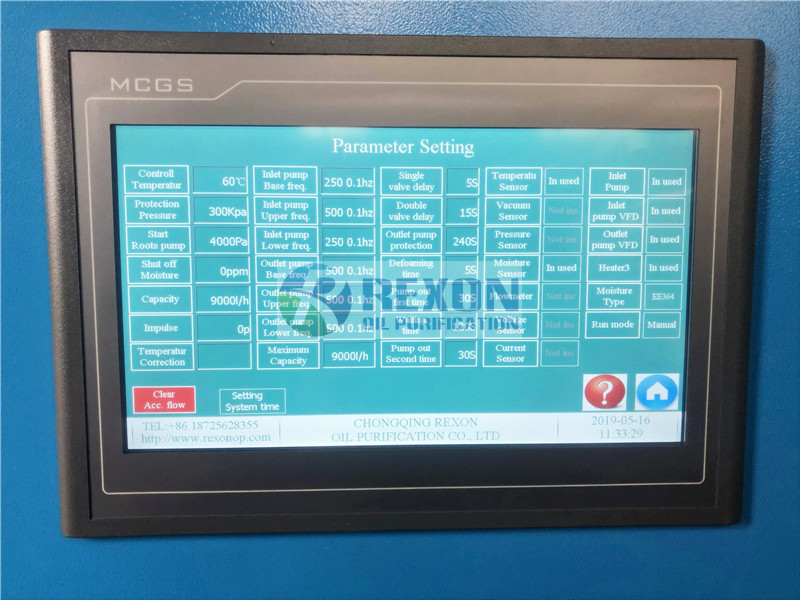

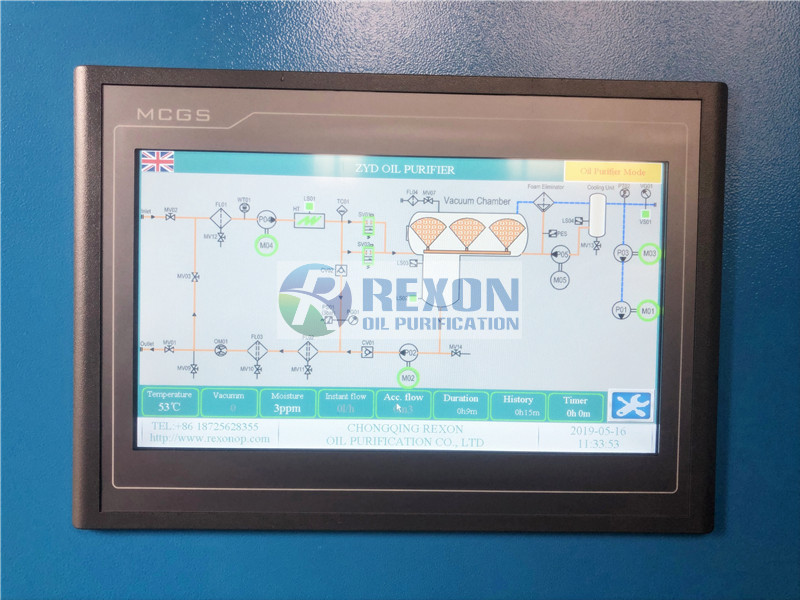

11. Can be installed by PLC programming control system to achieve machine working fully automatically.
Advantages:
Fully Enclosed Type Vacuum Heating Treatment Transformer Oil Purifier Machine 9000LPH, Series ZYD Double-stage transformer oil filtration system can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. As the bridge-type vacuum linking system that also can be an independent vacuum power supply, which can vacuuming and oil injecting for electric insulation devices.
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working Vacuum | Mpa | -0.08 ～-0.099 |
| Working Pressure | Mpa | ≤ 0.3 |
| Temp Range | ℃ | 20 ～80 |
| Power Supply | | 380V, 50Hz, 3Phase( As per required) |
| Working Noise | Db | 60 - 80 (Depended on the configuation) |
| Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 |
| Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | | 198 |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 |
| AFTER TREATMENT |
| Dielectric Strength | KV | ≥ 75-85 |
| Water Content | PPM | ≤ 3 |
| Gas Content | % | ≤ 0.1 |
| Particle Size | μ | ≤ 3 |
| Cleanliness ≤NAS 1638 Grade 5 |

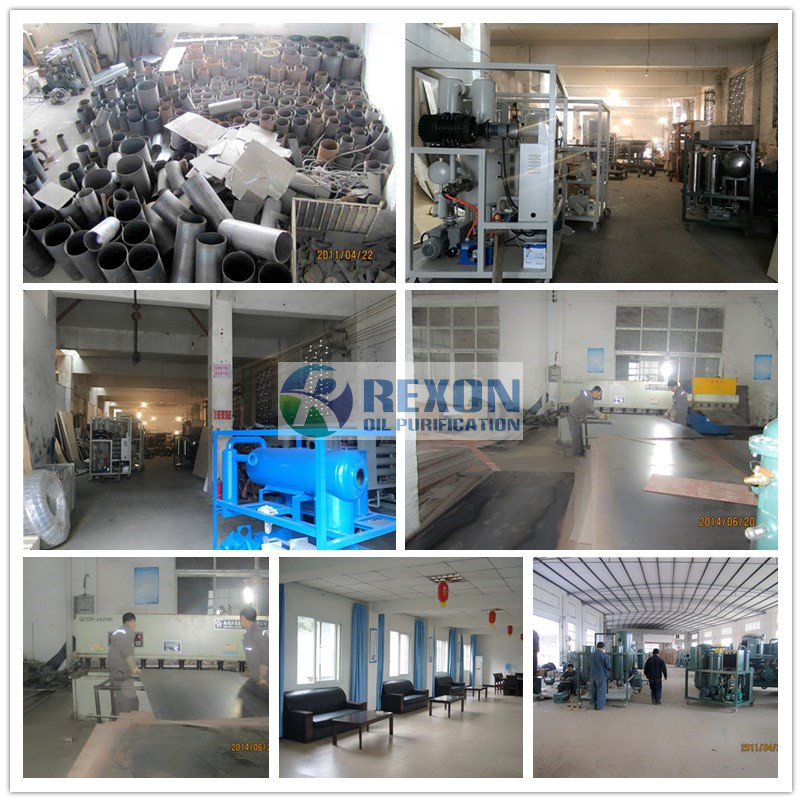

Factory View
Key words: oil purifier, oil purification, oil filtration, oil treatment, oil filter, waste transformer oil filtering, used transformer oil purification, old transformer oil, contaminated transformer oil, transformer oil purifier, transformer oil purification, transformer oil filtration, transformer oil treatment, transformer oil filter, transformer oil refinery, transformer oil separation, transformer oil recondition, transformer oil recycling, transformer oil reconstituted, transformer oil restituting, transformer oil recovery, transformer oil reuse, transformer oil renewable, transformer oil reclamation, transformer oil regeneration, transformer oil dehydration, transformer oil dewater, transformer oil degas, transformer oil cleaning, transformer oil recuperation

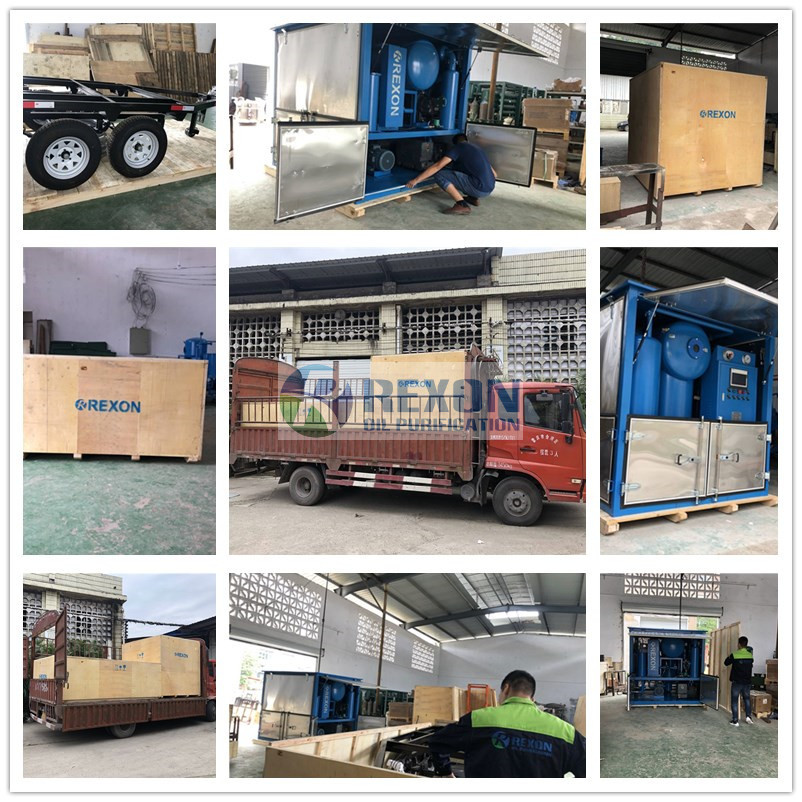

Packing & Delivery:
REXON Profile
Chongqing Rexon Oil Purification Co., Ltd is a leading oil purifier manufacturer and oil purification technology development company, we specialized in designing, producing, developing and selling various types of oil purification equipment such as transformer oil purifier, turbine oil purifier, lube oil purifier, hydraulic oil purifier, engine oil purifier, ship oil filtration plant, used cooking oil purifier, centrifuge oil separation purifier and all other industrial oil purification machines. We offered professional oil solutions service and oil purifier machines for world-wide customers near 20 years.
We have a number of national-class oil purification experts and experienced technology engineers, mechanical designers, and machine engineers and well skilled workers, and responsible sales persons as a strong team of our REXON group.
We adhere to the concept of mutual-benefit and win-win for business, with our honest and sincere spirit, pragmatic and serious work attitude, professional and responsible faith, we’d like to do our long-term commitment to all our customer that we will always make great effort to provide you the best oil purifying equipment with high cost performance, high reliability, and high intelligent & automatic operation mode. Better price, Better quality, and Better service! Hope to cooperate with you soon and let’s open up a new oil purification era and saving oil energy together.

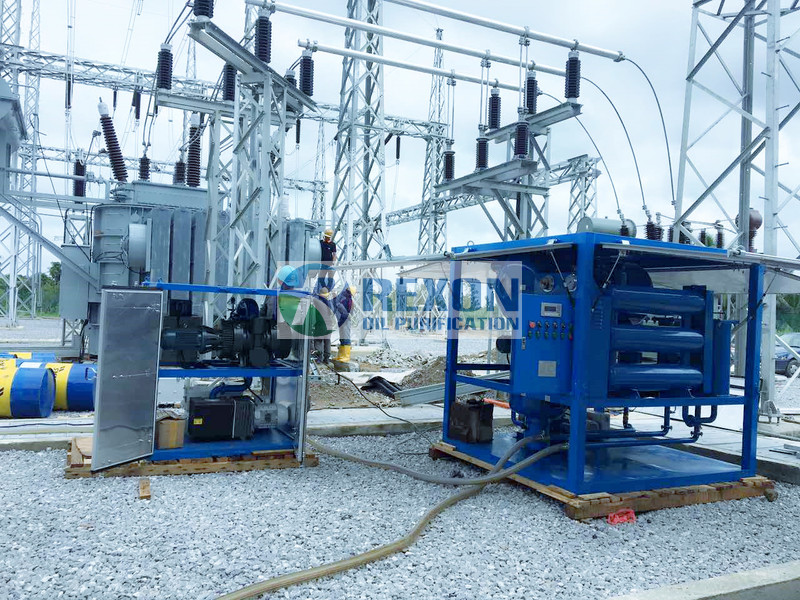

On-site Project
After Sales Service
►We will help to arrange the transport and shipping for the machine to customer.
►We offer full set documents for customs clearance at customer’s destination port.
►We will offer lifetime technical support for our equipment, free technical upgrade, free or chargeable spare parts supply, etc.
►We offer online service for customers 24 hours everyday. If you have any question while using our machine, you can contact us by online chat software, or by email, phone etc, we will get back to you very soon within 4 hours.

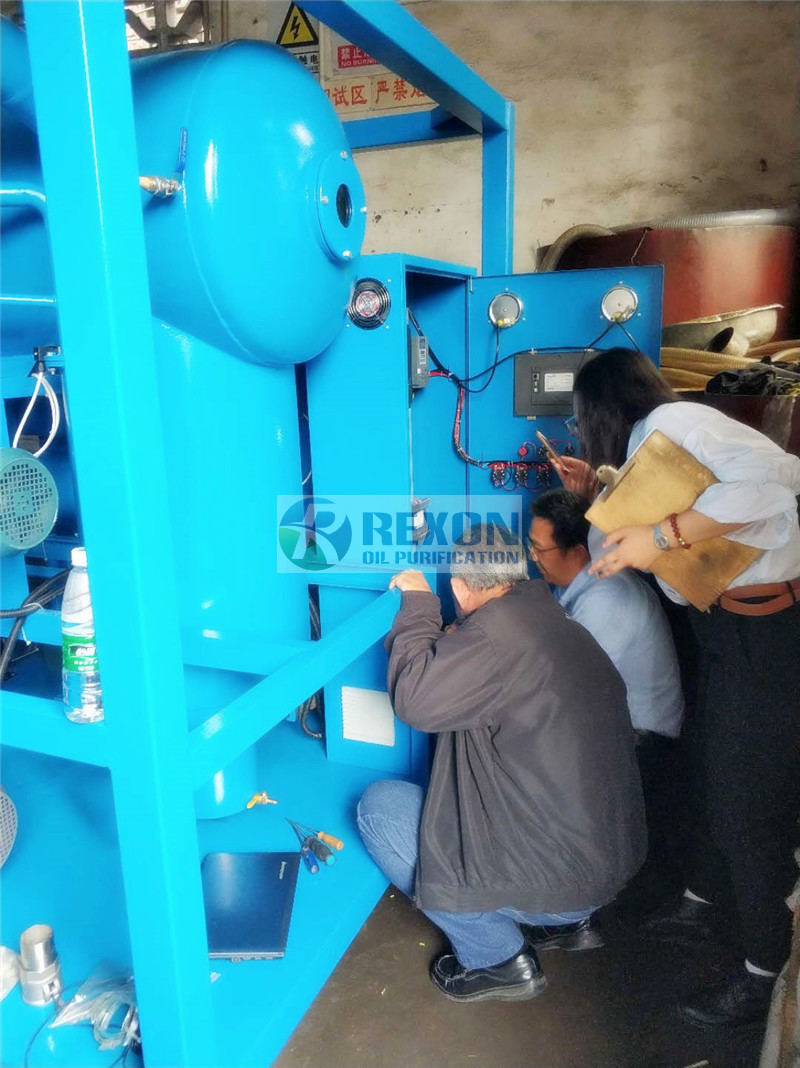

►We will also offer operation training for free in our factory and offer door-to-door service to send our engineer to your place for the machine’s installation service and operation training if you need.
►Installation, Operation and Maintenance details will be in the operation manual booklet and videos which will be sent to you with machine.
►Rexon’s guarantee time is two years for each of our equipment.
