High Performance 6000LPH Transformer Oil Treatment Plant Dewater And Degas From Oil

Fully Enclosed Type Vacuum Processing Insulating Oil Purification Plant Dewater and Degas from Oil


Technical Parameters:

Application:
Fully Enclosed Type Vacuum Processing Insulating Oil Purification Plant Dewater and Degas from Oil, Rexon Aluminium Alloy Enclosed Doors Type Dielectric Oil Treatment Machine is a ultra high vacuum oil dehydration system for Dielectric Transformer Oil Purification and Oil Regeneration. This dielectric oil filtration system can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally. It's particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work on-site. Meanwhile, it can be used as independent vacuum resource with functions of vacuum drying and vacuum oiling.

Spare Parts:

Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oil filling.
9. Weather Proof designing which can be used outside even in raining weather.
10.Designed for processing oil in workshops, in storage tanks or directly in transformers (energized and de-energized transformers both).

Advantages:
Fully Enclosed Type Vacuum Processing Insulating Oil Purification Plant Dewater and Degas from Oil, Aluminium Alloy Enclosed Doors is a upgrade material compared with normal metal metrial, it's better looking, and it can perform weather proof, raining proof functions well, as new material covers, which is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can take use of the machine in any weather and many circumstances for any on-site transformer oil filtration project.

REXON Profile

Chongqing Rexon Oil Purification Co., Ltd is a leading oil purifier manufacturer and oil purification technology development company, we specialized in designing, producing, developing and selling various types of oil purification equipment such as transformer oil purifier, turbine oil purifier, lube oil purifier, hydraulic oil purifier, engine oil purifier, ship oil filtration plant, used cooking oil purifier, centrifuge oil separation purifier and all other industrial oil purification machines. We offered professional oil solutions service and oil purifier machines for world-wide customers near 20 years.

We have a number of national-class oil purification experts and experienced technology engineers, mechanical designers, and machine engineers and well skilled workers, and responsible sales persons as a strong team of our REXON group.

We adhere to the concept of mutual-benefit and win-win for business, with our honest and sincere spirit, pragmatic and serious work attitude, professional and responsible faith, we’d like to do our long-term commitment to all our customer that we will always make great effort to provide you the best oil purifying equipment with high cost performance, high reliability, and high intelligent & automatic operation mode. Better price, Better quality, and Better service! Hope to cooperate with you soon and let’s open up a new oil purification era and saving oil energy together.

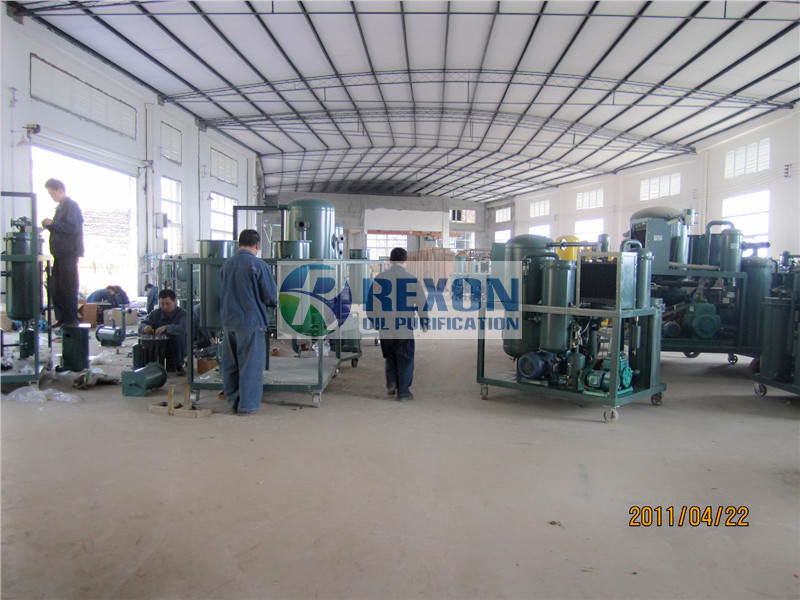

Factory View

Double-Stage Vacuum Transformer Oil Filtration Plant | Insulating Oil Purifier | Dielectric Oil Treatment

• Ideal for insulating oil clean up and transfer

• For large power transmission equipments above 110KV

• Eight models available to accommodate various flow rates

• Continuously removes free water down to 5 ppm or less

• Fluid cleanliness grade (NAS) to 6 or better

• Powerful Vacuum design .

• Dual water and particulate removal

• Coalescence-separation technology

• Duplex 3D evaporation technology

• Double-infrared fluid level controller

• A trinity of interlocked preventive device

• Carbon fiber infrared heating system

• Automatic back-flushing system.

• Unique H.P.M high molecule absorption material

• Mobile equipment for outdoor use

• Explosion-proof type available

• Live-line vacuum oiling and dehydrating feasible

The Transformer Oil regeneration system (Series ZYD) has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers especially for the power, which is over 110KV.

Also it can inject the insulating oil into the transformers on-line. The ZYD system provides regular oil purification such as degassing, drying and particulate removal but also can remove acidity, sludge, other soluble oil decay products and discoloration.

This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special brand of earth. After treating, the oil can be reused as new. For special application, the system also can be mounted on a leak proof base and can be installed and operated on a trailer.

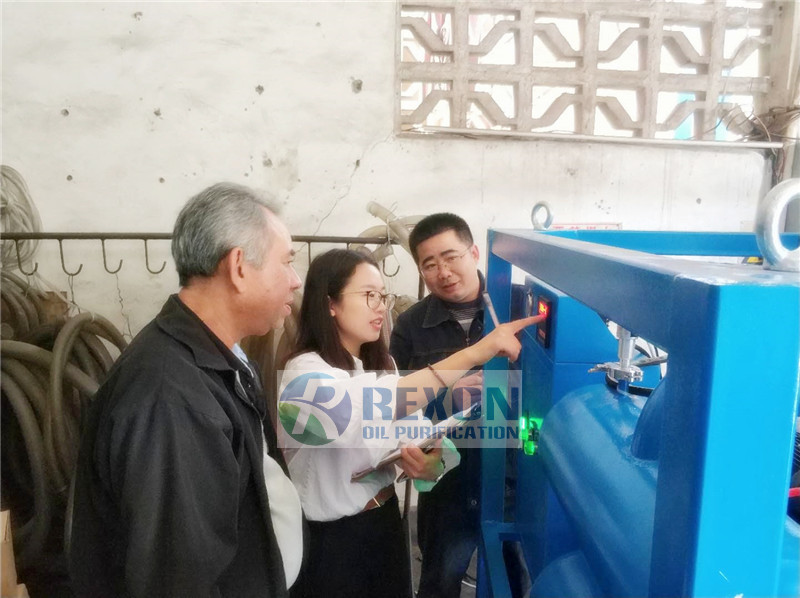

Customer Visit

Packing & Delivery:

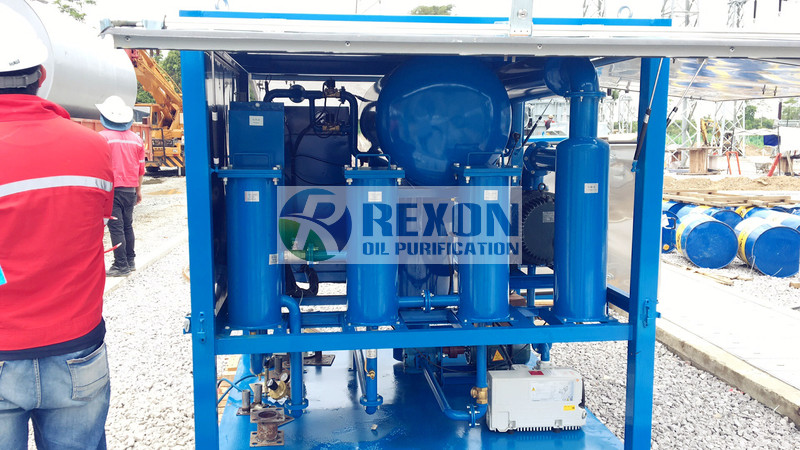

Onsite Project

After Sales Service

►We will help to arrange the transport and shipping for the machine to customer.

►We offer full set documents for customs clearance at customer’s destination port.

►We will offer lifetime technical support for our equipment, free technical upgrade, free or chargeable spare parts supply, etc.

►We offer online service for customers 24 hours everyday. If you have any question while using our machine, you can contact us by online chat software, or by email, phone etc, we will get back to you very soon within 4 hours.

►We will also offer operation training for free in our factory and offer door-to-door service to send our engineer to your place for the machine’s installation service and operation training if you need.

►Installation, Operation and Maintenance details will be in the operation manual booklet and videos which will be sent to you with machine.

►Rexon’s guarantee time is two years for each of our equipment.

Exhibition
