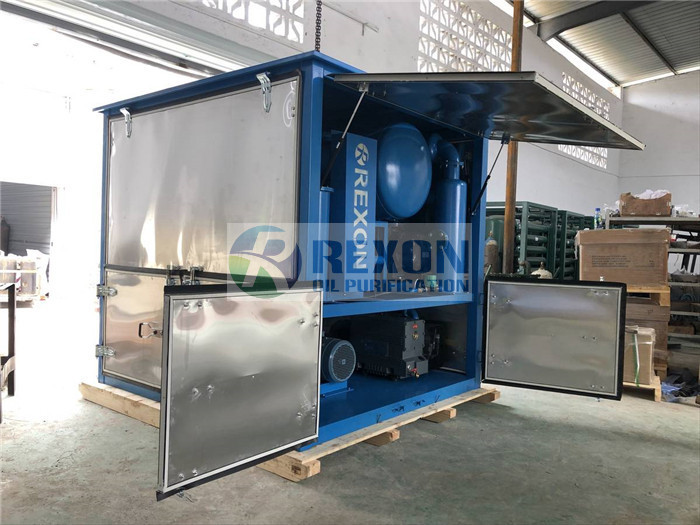

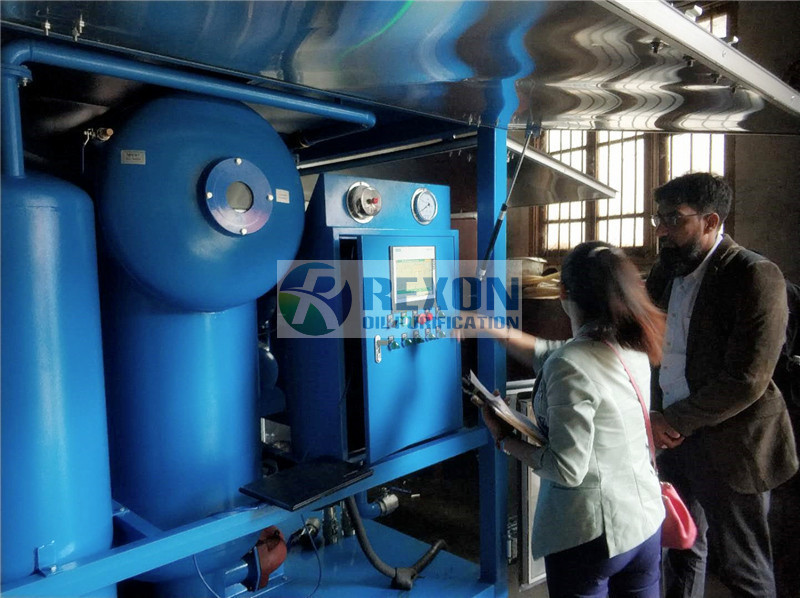

Upgrade Transformer Oil Purifier System with Vacuum Pump and Roots Pump 12000LPH
Brief Introduction
Machine Condition: New
Treatment Capacity: 12000 L/H
Working Pressure: ≤0.4 Mpa
Place of Origin: Chongqing, China (Mainland)
Brand Name: REXON OIL PURIFICATION
Model Number: ZYD-200
Application: Transformer Oil
Power data: 380V 50HZ/3 Phase Or As Required
Function: Vacuum oil dehydration and degassing, oil filtering, removing particles, free water, dissolved water, gas, acidity completely.
After-sales Service: Free factory training & Engineers available for on-site commissioning.
Warranty: 2 Years
Oil Data After Process:
Impurity size after process: ≤1 micron
Gas content after process: ≤0.1%
Moisture content after process: ≤3 PPM
Application
REXON Substation Field Use Vacuum Electric Insulating Oil Purifier Machine 6000 Liters/Hour, gas and impurities in insulation oil high-efficiently, increasing the pressure force and quality of oil, make the oil limiting voltage-withstand value much higher and make sure the electric device running safely. The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Features
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.
Advantages
Substation Field Use Vacuum Electric Insulating Oil Purifier Machine 6000 Liters/Hour, Comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher. This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.
Technical Parameters
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working Vacuum | Mpa | -0.08 ~-0.099 |
| Working Pressure | Mpa | ≤ 0.3 |
| Temp Range | ºC | 20 ~80 |
| Power Supply | | 380V, 50Hz, 3Phase( As per required) |
| Working Noise | Db | 60 - 80 (Depended on the configuation) |
| Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 |
| Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | | 198 |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 |
| AFTER TREATMENT |
| Dielectric Strength | KV | ≥ 75-85 |
| Water Content | PPM | ≤ 3 |
| Gas Content | % | ≤ 0.1 |
| Particle Size | μ | ≤ 3 |
| Cleanliness ≤NAS 1638 Grade 5 |
Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations
For more infomration and detailed product specifications, please contact us! Please leave us your email and mobile number to send you more photos , brochures and price details. Thank you!
