6000LPH Transformer Oil Filtration Machine for Oil Degassing Oil Dehydration and Oil Renew
6000LPH Transformer Oil Filtration Machine with Double Stage Filtration System Usage
It is used for filtration and recycling transformer oil, insulating oil, dielectric oil, cable oil, etc., the water content and particle impurities, gases can be removed quickly and effectively.
6000LPH Transformer Oil Filtration Machine with Double Stage Filtration System Principles
When the transformer oil purification machine start working, the transformer oil will be injected into the primary filter under the high vacuum pressure, then the primary filter will remove the big impurities from oil for the first stage filtering, after that, the oil will flow into heaters for thermostatically heating process. (Sometimes the oil will enter into heater first then primary filter, it depends on oil's condition. We will get to know every customer's requirements particularly before recommendation) Next, the heated oil will enter into the vacuum separator for a deep oil dehydration and degassing, and the vapor will be separated from the oil and refrigerate to water to be discharged finally through the water receiver, and dehydrated oil will enter into the secondary filter for second stage filtering process to deal with the medium size particles, after that, oil will enter into fine filter, which will remove the tiny particles completely from oil as last procedure. Finally, the pure cleaning oil is obtained.
6000LPH Transformer Oil Filtration Machine with Double Stage Filtration SystemAdvantages:
1) Advanced double-stage large capacity dehydration and degassing system which adopts large area three-dimensional flash evaporation technique to remove harmful composition in the oil such as water, air,gas and hydrocarbon etc.
2) It can be widely used for transformers on-site installation or maintenance to fill oil into transformers and circuit breakers under vacuum condition or conduct transformers evacuation operation.
3) Precise filtration system, high-quality filtering elements and multi-stage filtration with gradual precision can help to remove mechanical impurities from the oil effectively. While the filters are with self-inspection function for the pollutant-containing conditions.
4)Equipped with automatic temperature control system, liquid-level control system, defoaming control system, pressure protection system and high quality main components to ensure operation of the equipment with high reliability and perfect performance.
5) The machine supports on-line operation without supervision with indicators to show operation status.
6) The machine adopts humanization design with low noise, easy operation, long free-maintenance time and energy saving to lower the operation cost.
7) With electrical control inter-lock design. Vacuum system, oil pump system and heating system are interlocked in control.
8) Equipped with indication for changing filters and automatic stop device for overloaded filters.
9) Equipped with emergency stop for electric leakage and power overload to protect the motor.
10) With phase-sequence, phase lose protection function and safety control for sudden shut-down.
11) Equipped with vacuuming interface for transformer evacuation operation.
12) The outlet and inlet can be interchanged.
Optional Customized Design As Per Client's Requirements:

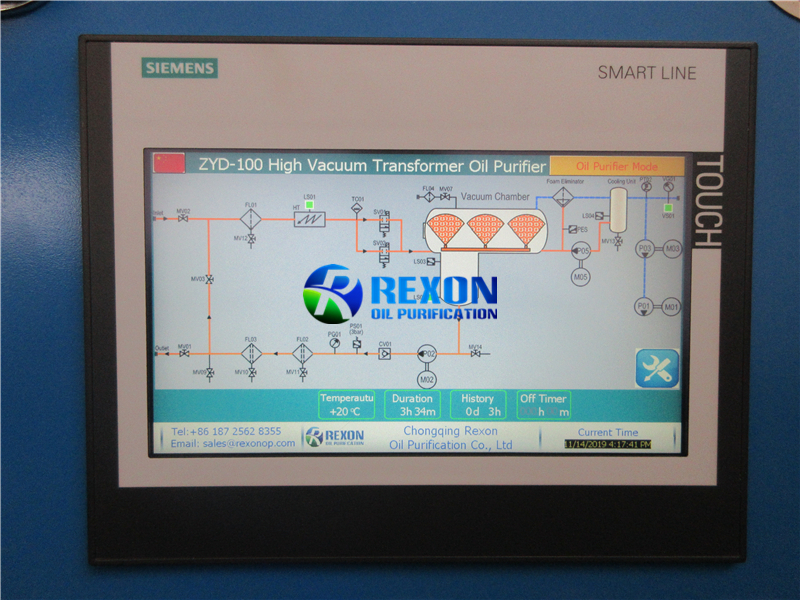

1, PLC intelligent control with touch screen operation and operation status dynamic display.
2, Online moisture tester, online particle counter and online flow meter with adding-up function.
3, Frequency converter for free adjustment of flow rate
4, The whole structure of the machine: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully nclosed style, conceal eaves type and open style of canvas etc
The pumps used on ZYD-100

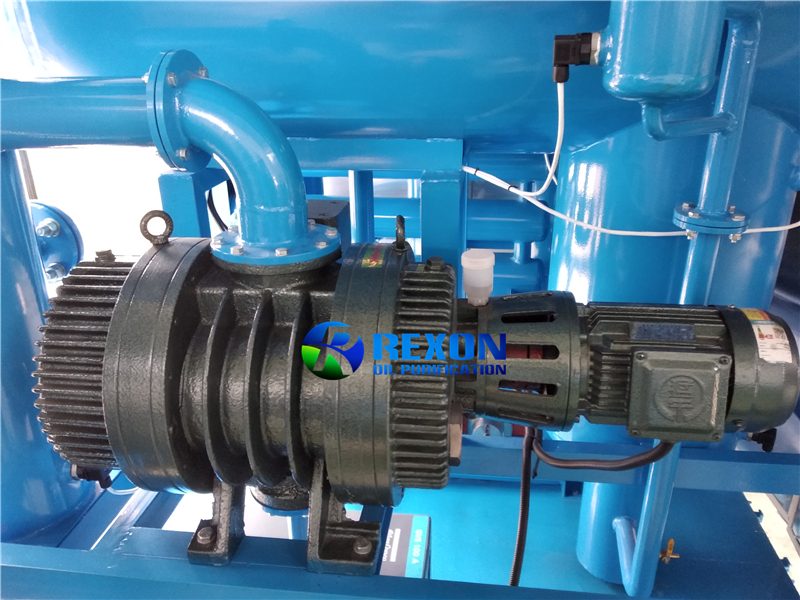

Roots pump

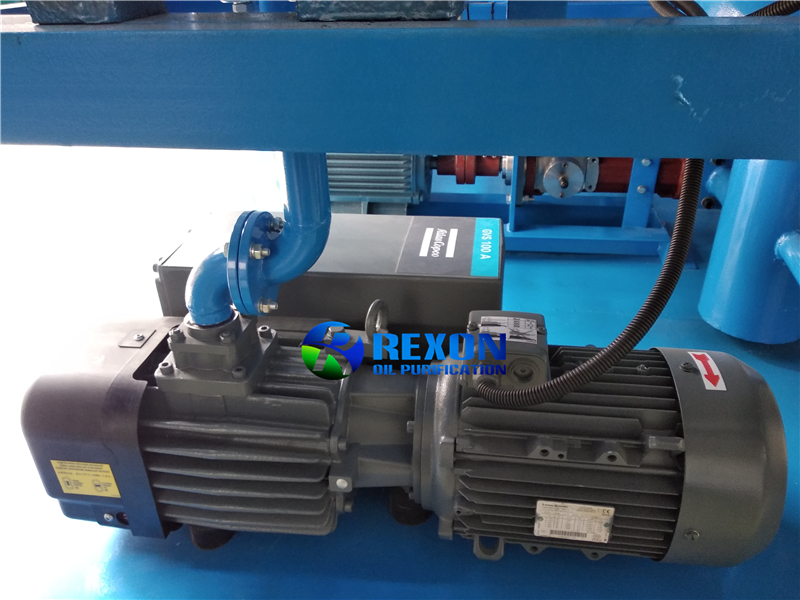

Vacuum Pump

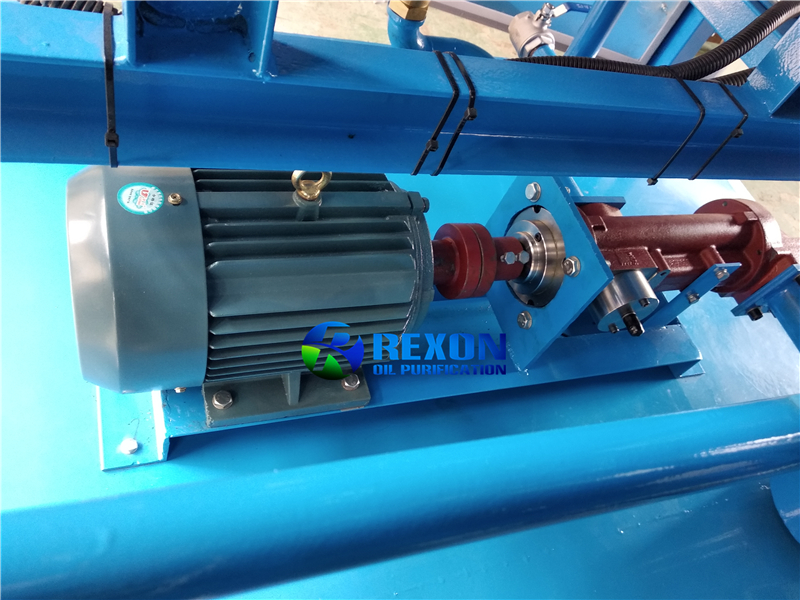

Oil Pump
For more infomration and detailed product specifications, please contact us! Please leave us your email and mobile number to send you more photos , brochures and price details. Thank you!
|
|
6000LPH Transformer Oil Filtration Machine for Oil Degassing Oil Dehydration and Oil Renew Images
|
