High Quality Dust Proof Type Transformer Oil Filtration Purifier Machine 6000L/H
1.Transformer oil purification plant FUNCTION
The main function of ZYD Series of double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformers. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.
2.transformer oil purification plant TECHNICAL FEATURES
l Doubles the evaporation area by adopting double vacuum separation technology efficiently and reliability thorough removal of gas in the oil by using coalescing oil spray separator.
Adoption of American fine filter element, fineness: 5μm, ß≥1000
Low noise and long life of the oil transport system
Adoption of heating technique with the way of thermal radiation, constant temperature control.
The use of float valve and photoelectric oil level control, eliminates supervision
Adoption of French de-foaming technique to avoid oil leaking
Controlled digitally and automatically by PLC
Major electric apparatus are imported from Europe, so the controlling system safe and reliable
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working Vacuum | Mpa | -0.08 ~-0.099 |
| Working Pressure | Mpa | ≤ 0.3 |
| Temp Range | ºC | 20 ~80 |
| Power Supply | | 380V, 50Hz, 3Phase( As per required) |
| Working Noise | Db | 60 - 80 (Depended on the configuation) |
| Heating Power | KW | 30 | 60 | 90 | 135 | 150 | 165 | 180 |
| Total Power | KW | 35 | 67.5 | 101.5 | 149 | 164 | | 198 |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 |
| AFTER TREATMENT |
| Dielectric Strength | KV | ≥ 75-85 |
| Water Content | PPM | ≤ 3 |
| Gas Content | % | ≤ 0.1 |
| Particle Size | μ | ≤ 3 |
| Cleanliness ≤NAS 1638 Grade 5 |
We are the leading manufacture near 20 years experience and supply best quality and highest cost performance oil purification machines. Our oil purifier equipment are built by high quality raw materials with newest advanced technology by many skilled technicians and professional workers. We are honest to every customer and responsible for every machine we sold, we offer great after sales service, anytime when customer need us, no matter before or after purchase, we are available online or calling, to make a fast and instant response to customer.
We practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.For detailed product specifications, please leave us your email or mobile no. to send you the catalog. Thank you.
|
|

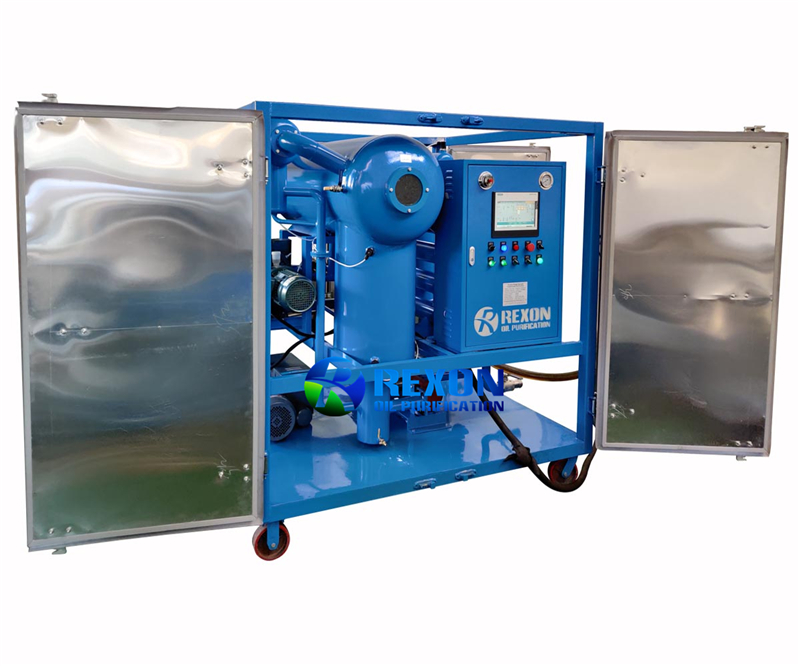

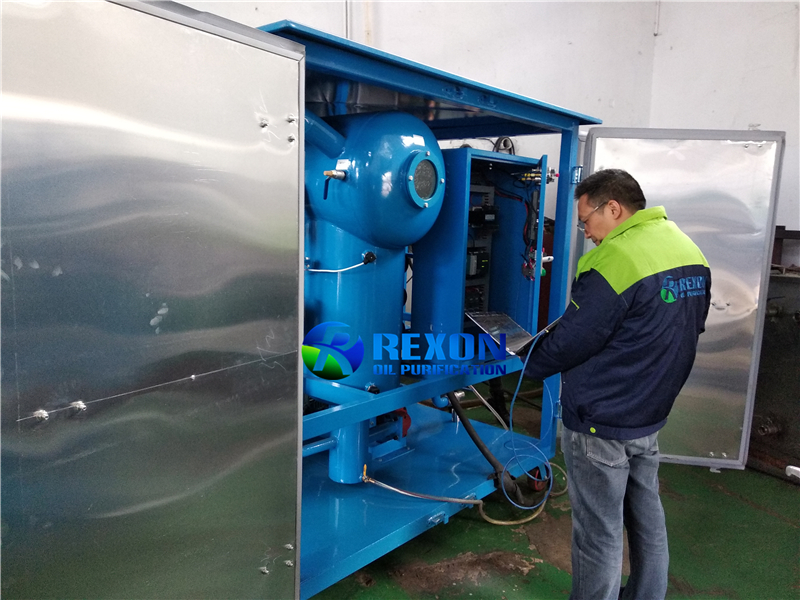

High Quality Dust Proof Type Transformer Oil Filtration Purifier Machine 6000L/H Images
|
