Application of Turbine Oil Purifier/ Oil Filtration Machine:
1. suitable for treatment of turbine oil.
2. vacuum-segregating employs a particular stainless steel,foldable column for dehydration and degassing ,and enlarges the area of separatingto facilate three-dimensional evaporation, so as to abtain enough time for degrassing and achieve the best effect of separation.
3. new type of heating equipment, which has low heating load and is able to prevent oil from ageing.
4. an imported liquid ring vacuum pump and takes cooling liquid (or water) as a lubracating meduim. Thus it wont matter if gas enters the vacuum pump, and users need not to bother to replace the medium-functioning oil in the roatry vane vacuum pump.
5. Oil level control adopt photoelectric way ( the main components is imported from Switzerland )and features a very sensitive precise control. Even foams can be sensed, and thus there is no possibility of oil spray.
6. It uses a special high-vicosity oil feed pump and a special sealing treatment. It is free from oil leakage, low operation noise, and long useful life.
7. It also features a scientifically designed precision filtering element. In this filter, China-made filtering elements can be inter-replaced with italy imported ones so that users can resort to a suitable filter material according to thei quality of different oil.
Advantages
1. REXON TY-100 is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil.
2. REXON TY-100 can rapidly and effectively remove water, gas and impurities from oil, and it can break emulsification fast.
3. REXON TY-100 aims at turbine oil's nature of high water content, easy emulsification and high impurities content to make the oil recover the new oil's nature.

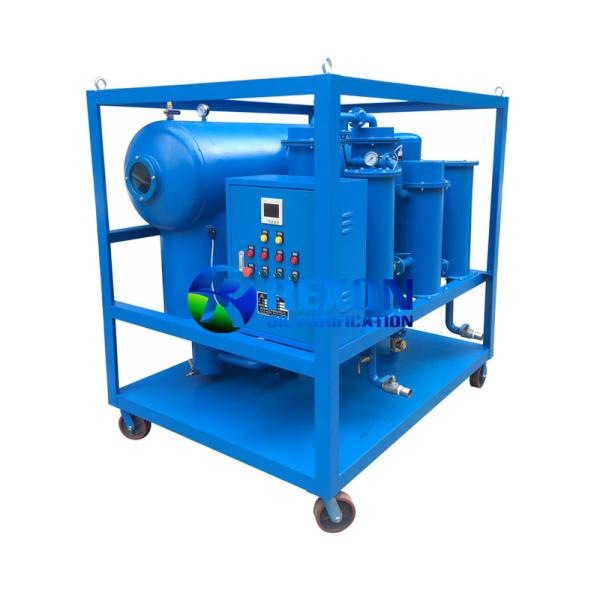

TY-100 Machine Pictures
Technical Parameters:
| Item | Unit | TY-10 | TY-20 | TY-30 | TY-50 | TY-100 | TY-150 | TY-200 | TY-300 |
| Flow rate | Liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 24000 |
| Working Vacuum Degree | MPa | -0.06 ~-0.095 |
| Working Pressure | MPa | ≤ 0.3 |
| Temperature Range | ºC | 20 ~80 |
| Water content | PPM | ≤50 |
| Impurity content | μm | ≤5 |
| Gas content | % | ≤0.1 % |
| Cleanness | NAS | ≤6 grade (NAS1638) |
| Demulsification value | min | ≤15 (GB/F 7305) |
| Power Supply | | 3 Phase, 50 Hz, 380V (or as per requirement) |
| Heating power | kW | 12 | 15 | 18 | 24 | 45 | 60 | 72 | 84 |
| Total power | kW | 14 | 17 | 20 | 27 | 48 | 66 | 81 | 97 |
| Inlet/outlet caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 |
| Weight | kg | 400 | 450 | 500 | 600 | 700 | 900 | 1050 | 1550 |
| Dimension | Length | mm | 1280 | 1350 | 1350 | 1400 | 1500 | 1500 | 1600 | 1800 |
| Width | mm | 750 | 900 | 950 | 950 | 1000 | 1200 | 1350 | 1400 |
| Height | mm | 1450 | 1450 | 1500 | 1600 | 1650 | 1800 | 1800 | 1850 |
For more information, please contact us. And kindly leave your Email, Tel, Mobile No. etc. then we can feedback to you immediately. Thank you.
|
|
