50HZ Automatic Transformer Oil Filtration Machine , Insulation Oil Purifier

Name: 50HZ Automatic Transformer Oil Filtration Machine Insulation Oil Purifier
Brand: REXON
Price: 1 USD

China 50HZ Automatic Transformer Oil Filtration Machine , Insulation Oil Purifier wholesale

Brand Name : REXON

Model Number : ZY-50(3000LPH)

Certification : CE, ISO, SGS, CCC

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500Sets per Month

Delivery Time : 3~10 working days basd on model

Packaging Details : Standard wooden cases

Function : Transformer Oil Filtration

Process Capacity : 1,000Liters/Hour ~ 20,000Liters/Hour

Power Supply : 380V, 3Phase, 50HZ or as required

Color : Green, Blue, Grey, White, Yellow Etc.

Work Principle 01 : Automatic Foaming Elimination

Work Principle 02 : Vacuum Oil Dehydration

Work Principle 03 : Multi-Stage Oil Filtering

Work Principle 04 : Thermostatically Heating

Contact Now

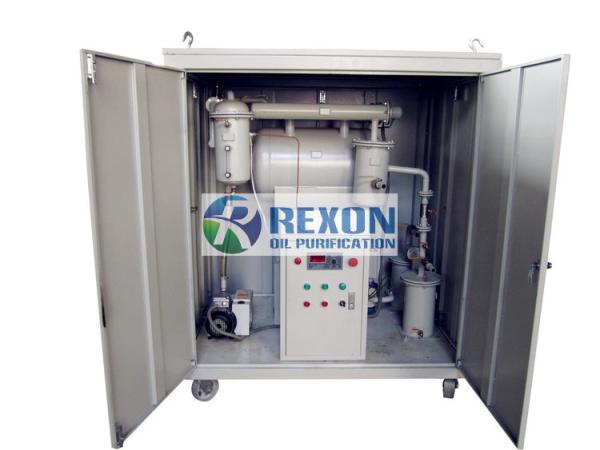

Weather Proof Type Single Stage Vacuum Transformer Oil Purifier | Enclosed Type Insulating Oil Treatment Machine ZY-50

Application:

REXON Weather Proof Type Single Stage Vacuum Transformer Oil Purifier | Enclosed Type Insulating Oil Treatment Machine ZY-50 is equipped with weather proof enclosure, very suitable for outdoor on site use. It's a high efficiency vacuum insulating oil purifier, mainly for the power station, industrial and mining enterprises purifying the unqualified transformer oil, mutual inductor oil, switch oil and so on.
Features:
1. Duplex 3D stereo-evaporation technology, dewatering and degassing effectively.
2. Distinctive remove the impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
3. Infrared liquid level automatic controller system
4. A trio of inter locked preventive device.
5. It can work independently, also it can work with the oil regeneration system.
6. Vacuum oiling of power equipment and drying moisture of power equipment.
7. Automatic testing the oil dielectric strength and printing out the result (Specially ZYA Series).
8. Can be operated both on-load and off-load.
Advantage:
Series ZY-W can remove water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, this oil purifier can be used to power equipment to vacuum drying, and vacuum oiling.This type of machine not only can degas, dewater, removing the impurities of insulating oil quickly and effectively. It improves the value of voltage value, and make sure electrical equipment work safely.

Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations

Technical Parameters:

Item	Unit	ZY-10	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200
Flow Rate	L/min	10	30	50	100	150	200
Vacuum Degree	MPa	-0.08 ～-0.095
Working Pressure	MPa	≤0.3			≤0.5
Temperature Range	℃	10 ～80
Power Supply		380V, 3PHASE, 50HZ (Or as needed)
Working Noise	dB(A)	≤75	≤75	≤75	≤80	≤80	≤80
Heating Power	kW	18	24	30	45	60	72
Total Power	kW	22	28	35	50	68	80
Inlet (outlet) caliber	mm	25	25	32	42	50	50
Dimension	mm	1500 ×900 ×1550	1600 ×900 ×1650	1600 ×900 ×1700	1600 ×950 ×1700	1600 ×950 ×1800	1700 ×1000 ×1900
Weight	Kg	400	450	600	800	850	900
Breakdown Voltage	kV	≥70
Water Content	PPM	≤5
Gas Content	%	≤0.1
Particles Size	μm	≤1~5(Without Free Carbon)
Cleanliness ≤NAS 1638 Grade 5

50HZ Automatic Transformer Oil Filtration Machine , Insulation Oil Purifier
►We are the leading manufacture near 20 years experience and supply best quality and highest cost performance oil purification machines. Our oil purifier equipment are built by high quality raw materials with newest advanced technology by many skilled technicians and professional workers. We are honest to every customer and responsible for every machine we sold, we offer great after sales service, anytime when customer need us, no matter before or after purchase, we are available online or calling, to make a fast and instant response to customer.
►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you.
